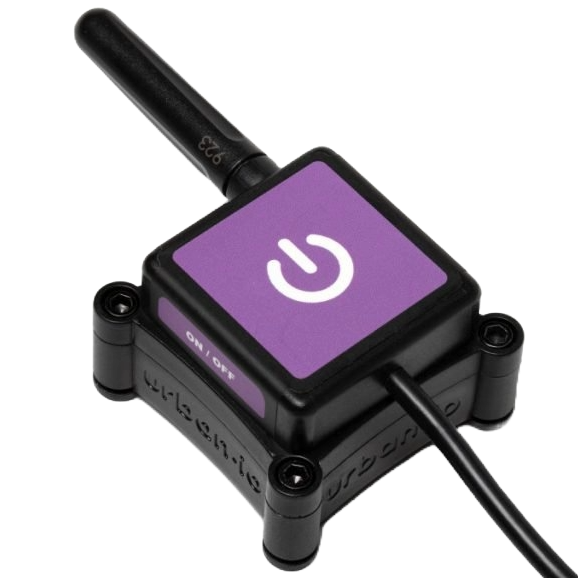

On/off sensor
Intelligent activity and motion detection using passive infrared technology.
Accurate 10-minute counting with automatic transmission via gateway.
5 km
Outdoor range
500 m
Indoor range
2 years
Battery life
10 mn
Transmission
Key features
Can be used to detect an electrical contact between two wired points, an external mechanical switch, a relay, a contactor, or a low-voltage control interface.
Cloud reporting platform
Seamless integration into your existing cloud systems.
IoT API
Public MQTT APIs and REST web services available.
Email/SMS alerts
Real-time notifications for faster response.
IP67 protection rating
Resistant to water, dust, and outdoor conditions.
Infrared detection
Passive infrared sensor for accurate detection.
Versatile use
Indoor and outdoor use, temperature range -40°C to 85°C.

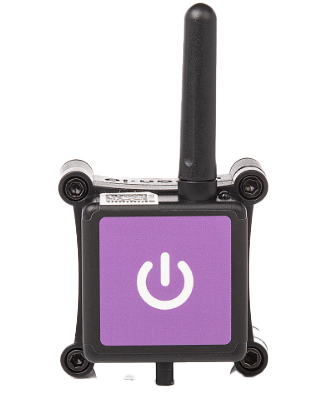

Technical specifications
General Sensor Features
Gateway to sensor network
500m indoor
5 km outdoors
Température
de fonctionnement
-40°C to 85°C
Power supply
3.0 V CR2477 coin cell battery (replaceable)
Durée
de vie de la batterie
2 years under normal operation
Fréquence
de lecture
Constant monitoring
Fréquence
de transmission des données
10 minute interval
Technical specifications
Résolution maximale
Digital threshold 0,1
NO detection wires
Value : O
Fils de détection toute tension
Value : 1
Calibration – Drift
None
Accuracy
100% accurate
Temperature range
-20°C to 85°C
Protection rating
IP67
Power specifications
Supply voltage
2,0 - 3,4 VDC
Current consumption – Standby mode
6 to 12 uA
Current consumption – Sampling mode
6 uA for 1 seconde
Current consumption – RX radio mode
25 mA for 0,5 seconds
Current consumption – TX radio mode
100 mA for 0,5 seconds
Frequency bands
915-925 MHz
Suitable for South East Asia, Australia, North/South America.
863-870 MHz
Suitable for Africa, Middle East, Europe.
779-787 MHz
Suitable for China.

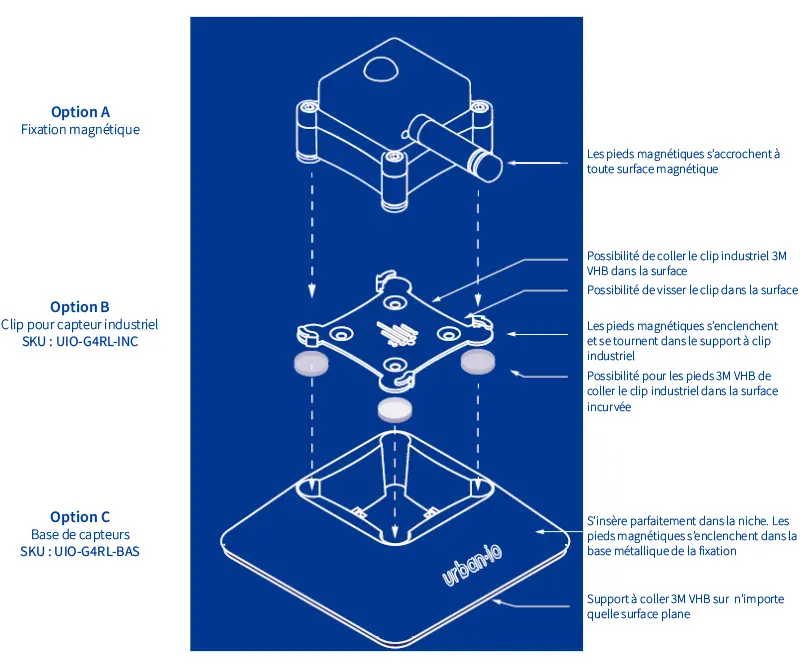

Mounting and dimensions
Length : 73 mm (with antenna)
Height : 29 mm
Width : 44 mm
Weight : 85 g
Example Applications
Lift and escalator monitoring
Relay switch monitoring
Fire panel monitoring
The company Urban IO
Urban IO provides a complete turnkey, industrial-grade system specifically designed for monitoring assets, systems, and spaces.
Our solution is the simplest and most cost-effective way to connect your assets to your management systems.
