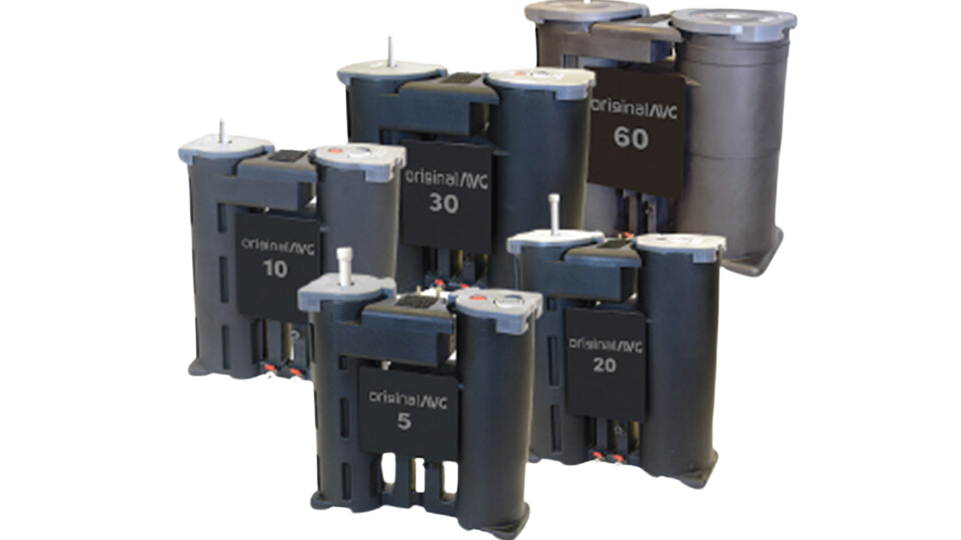

Oil/Water Separators 5-60
The oil/water separators 5-60 ensure effective separation of all types of lubricants used in compressors.
These separators come in 5 models, covering up to 60m3/min.
The compressor's capacity offers sizing flexibility.
With a simple, quick and clean installation and maintenance procedure, 5-60 oil/water separators feature high-performance filtration materials.
Technical specifications :
|
Maximum oil absorption capacity
|
Maximum oil absorption capacity
|
Input connection
|
Output connection
|
Test valve
|
Drain
|
Overflow indicator
|
Component life indicator
|
Body material
|
|
5
|
5 |
1/2''(2)
|
1''
|
Yes |
No |
Yes |
Yes |
PE
|
|
10
|
10 |
1/2''(2)
|
1''
|
Yes |
Yes |
Yes |
Yes |
PE
|
|
20
|
20 |
1/2''(2)
|
1''
|
Yes |
Yes |
Yes |
Yes |
PE
|
|
30
|
30 |
1/2''(2)
|
1''
|
Yes |
Yes |
Yes |
Yes |
PE
|
|
60
|
60 |
1/2''(2)
|
1''
|
Yes |
Yes |
Yes |
Yes |
PE |

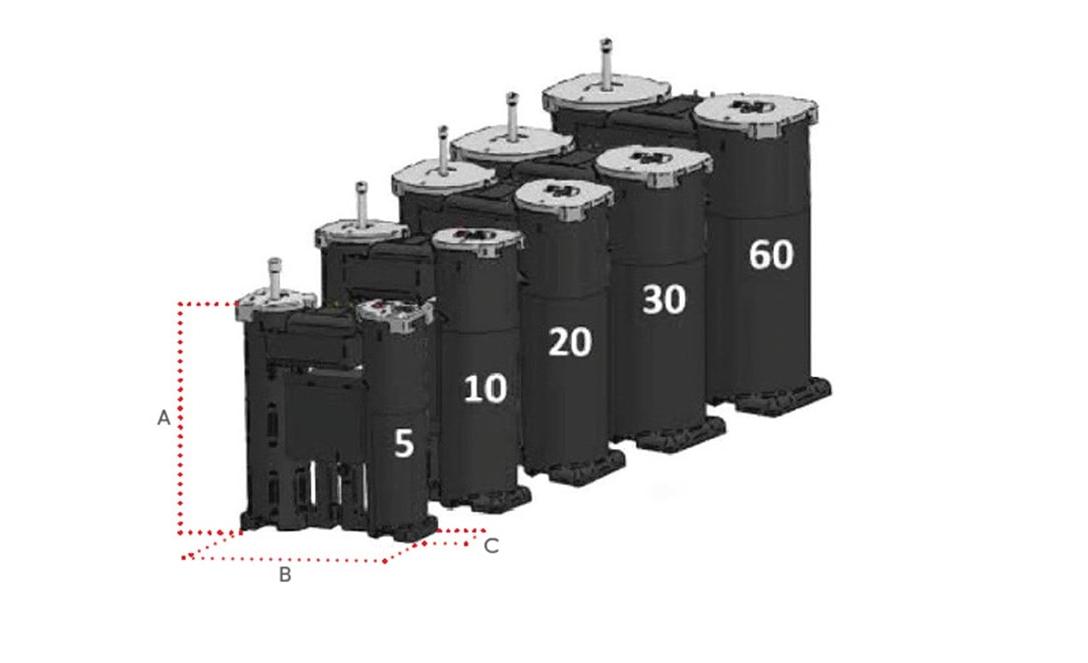

Technical diagram :
|
|
5 | 10 | 20 | 30 | 60 |
| A | 610 | 750 | 900 | 900 | 1040 |
| B | 580 | 650 | 780 | 970 | 1160 |
| C | 190 | 240 | 305 | 380 | 480 |
Dimensions in mm.
