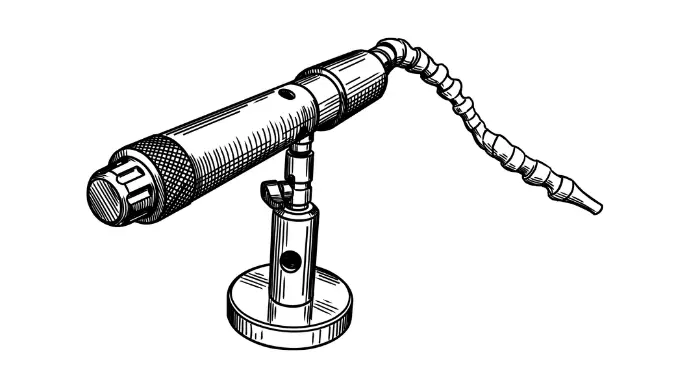

Vortex tubes
Vortex tubes are a simple, efficient, maintenance-free solution for generating instant cold air from compressed air.
QU'EST-CE QU'UN TUBE VORTEX ?
A vortex tube is an innovative pneumatic device that uses only compressed air to simultaneously generate a stream of cold air and a stream of hot air. With no moving parts and no chemical refrigerants, it provides a reliable, cost-effective, and environmentally friendly solution for spot cooling.
POURQUOI CHOISIR NOS TUBES VORTEX ?
OI Technologies offers a complete range of vortex tubes designed to meet the specific requirements of each industrial application. Our products stand out for :
Superior quality
High-grade materials for enhanced durability.
Wide range of models
Various sizes and capacities to suit your needs.
Simplicity and reliability
No moving parts, reducing maintenance requirements while ensuring consistent performance.

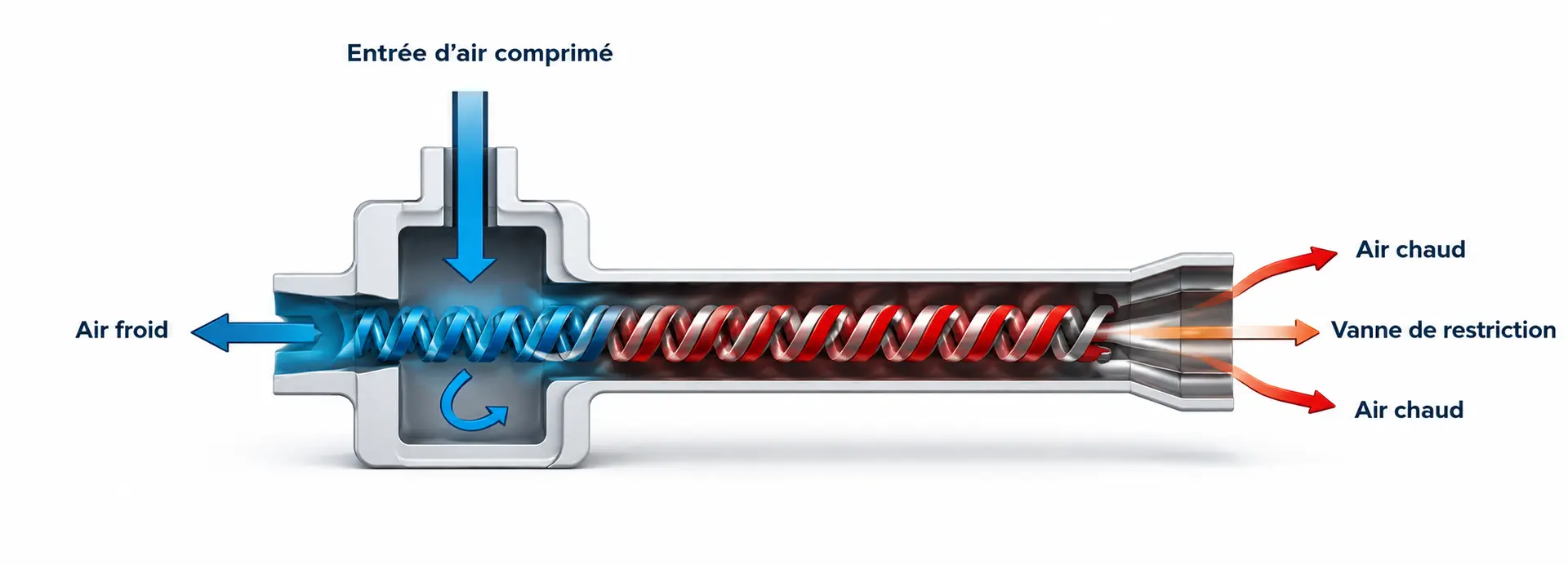

FONCTIONNEMENT DES TUBES VORTEX
Compressed air is injected tangentially into a cylindrical chamber, creating a high-speed swirling motion. This phenomenon, known as the vortex effect, separates the air into two distinct streams :
- Hot stream : expelled from one end of the tube
- Cold stream : directed toward the opposite end
A control valve allows the adjustment of the proportion of hot air being vented, enabling precise control over the temperature and flow rates of the output streams.
En savoir plus sur la technologie Vortex

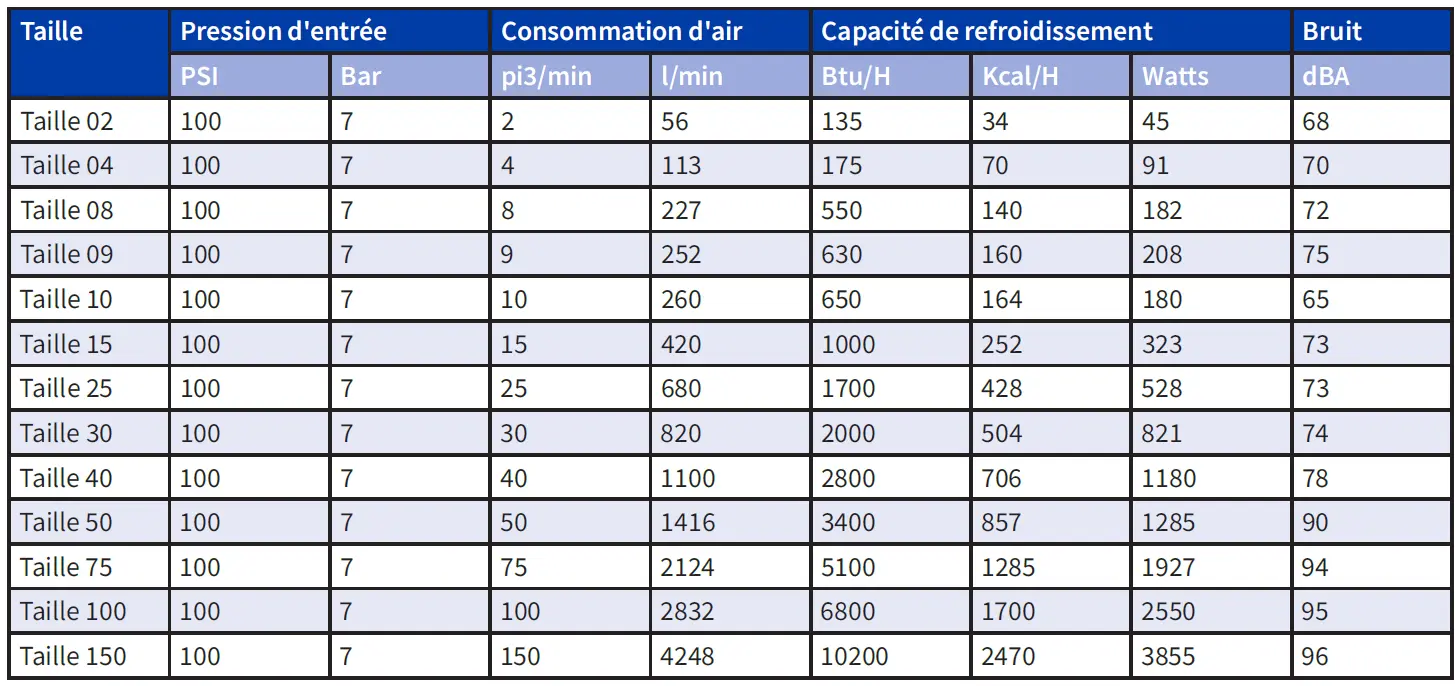

TABLEAU DE PERFORMANCES PAR TAILLES

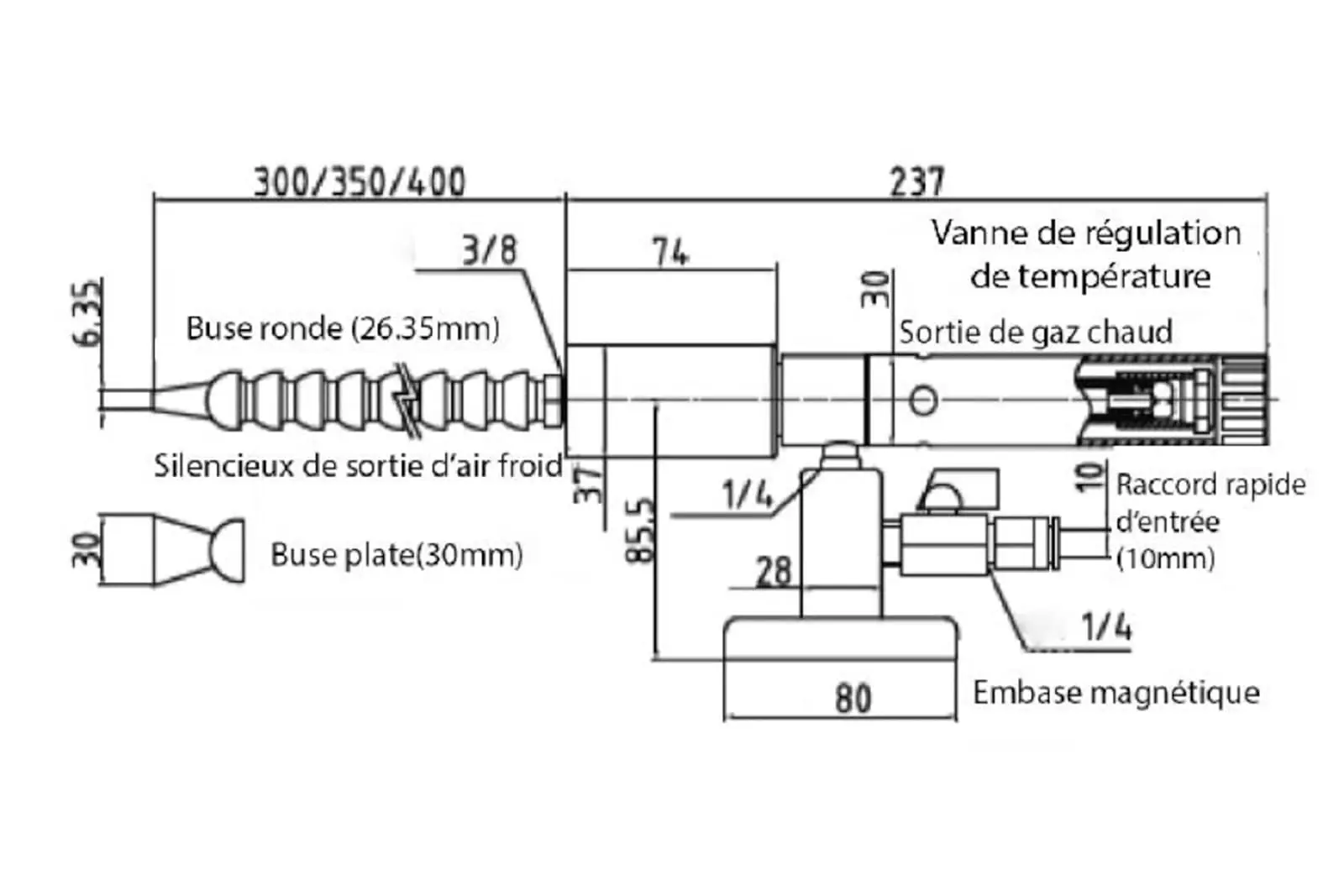

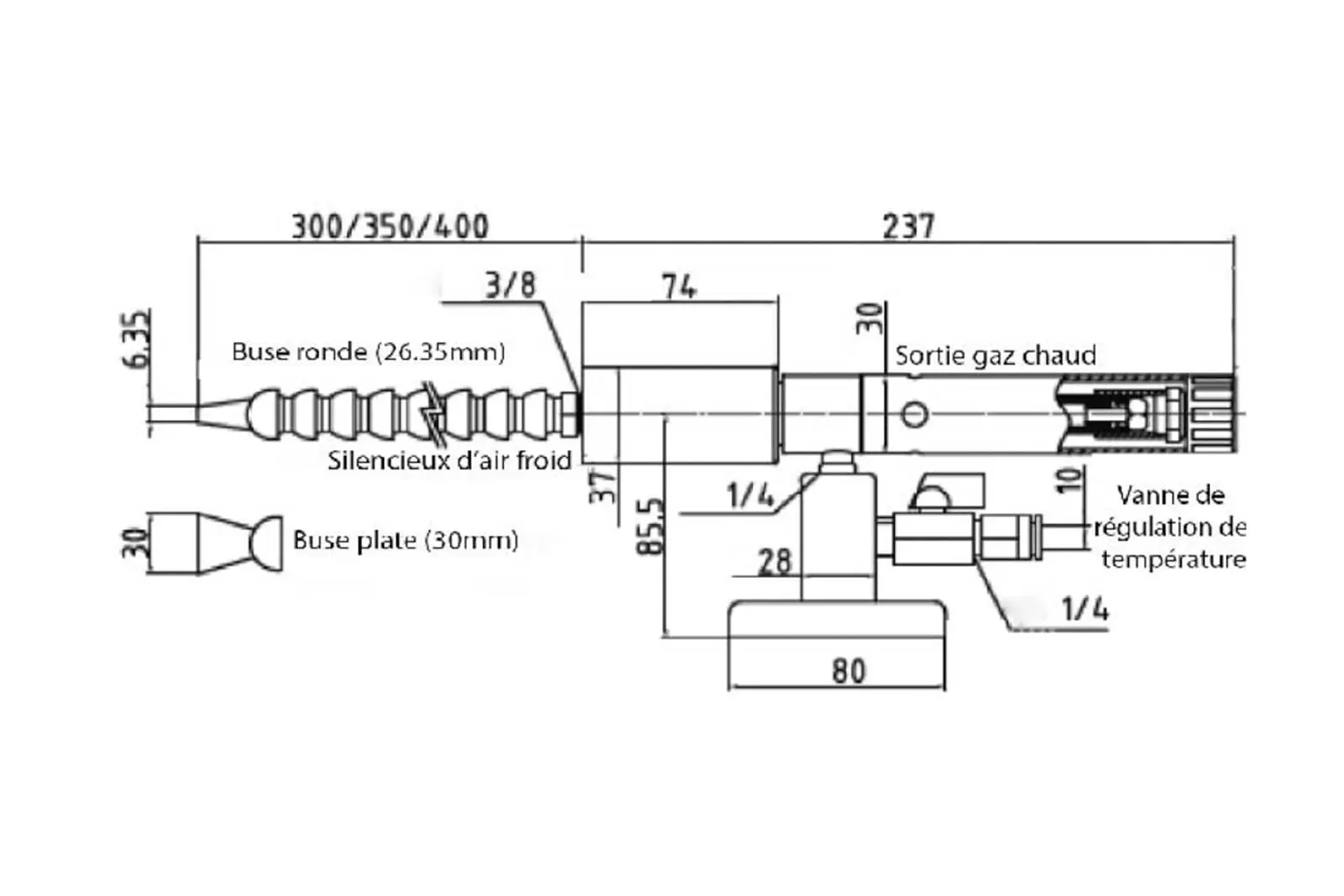

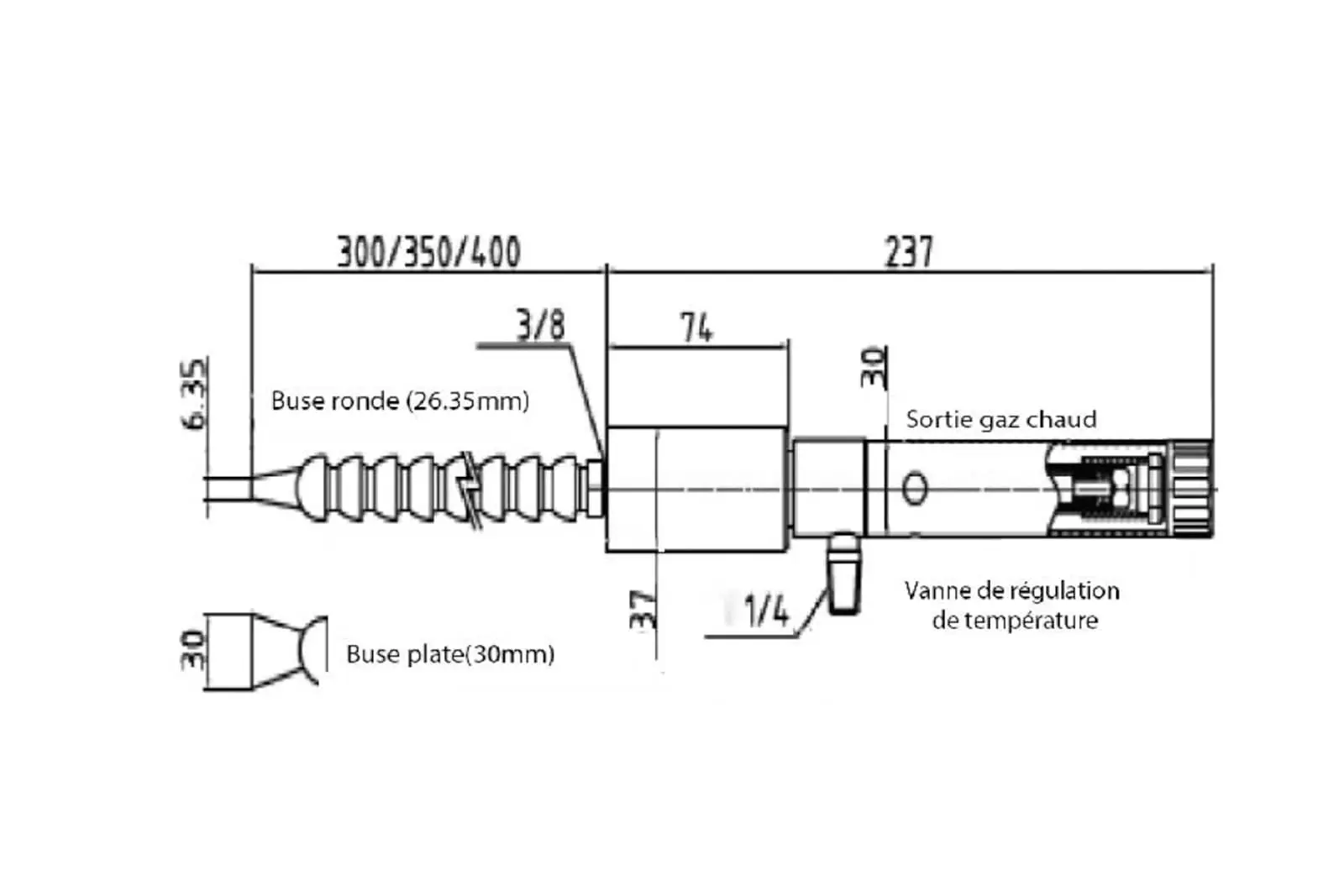

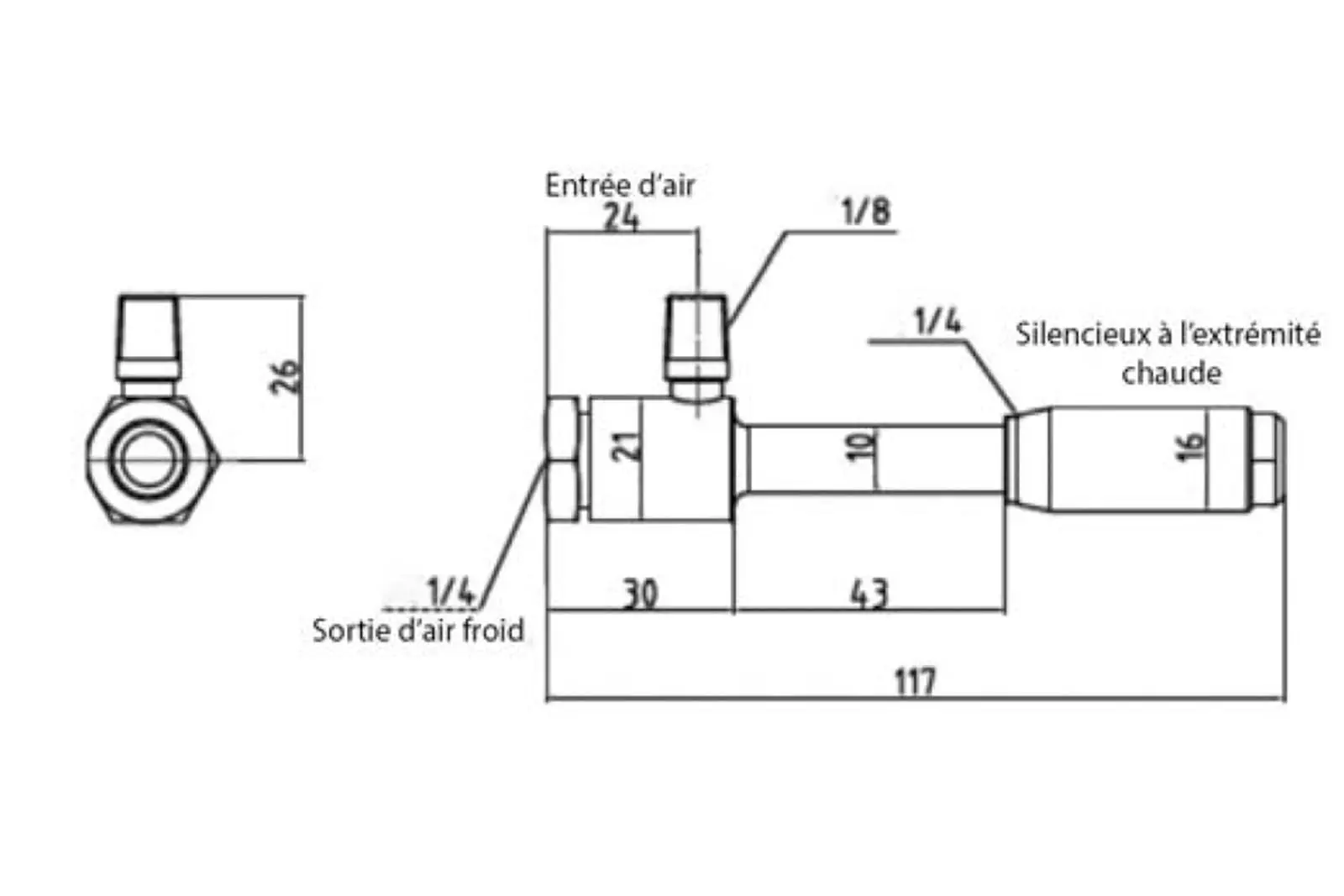

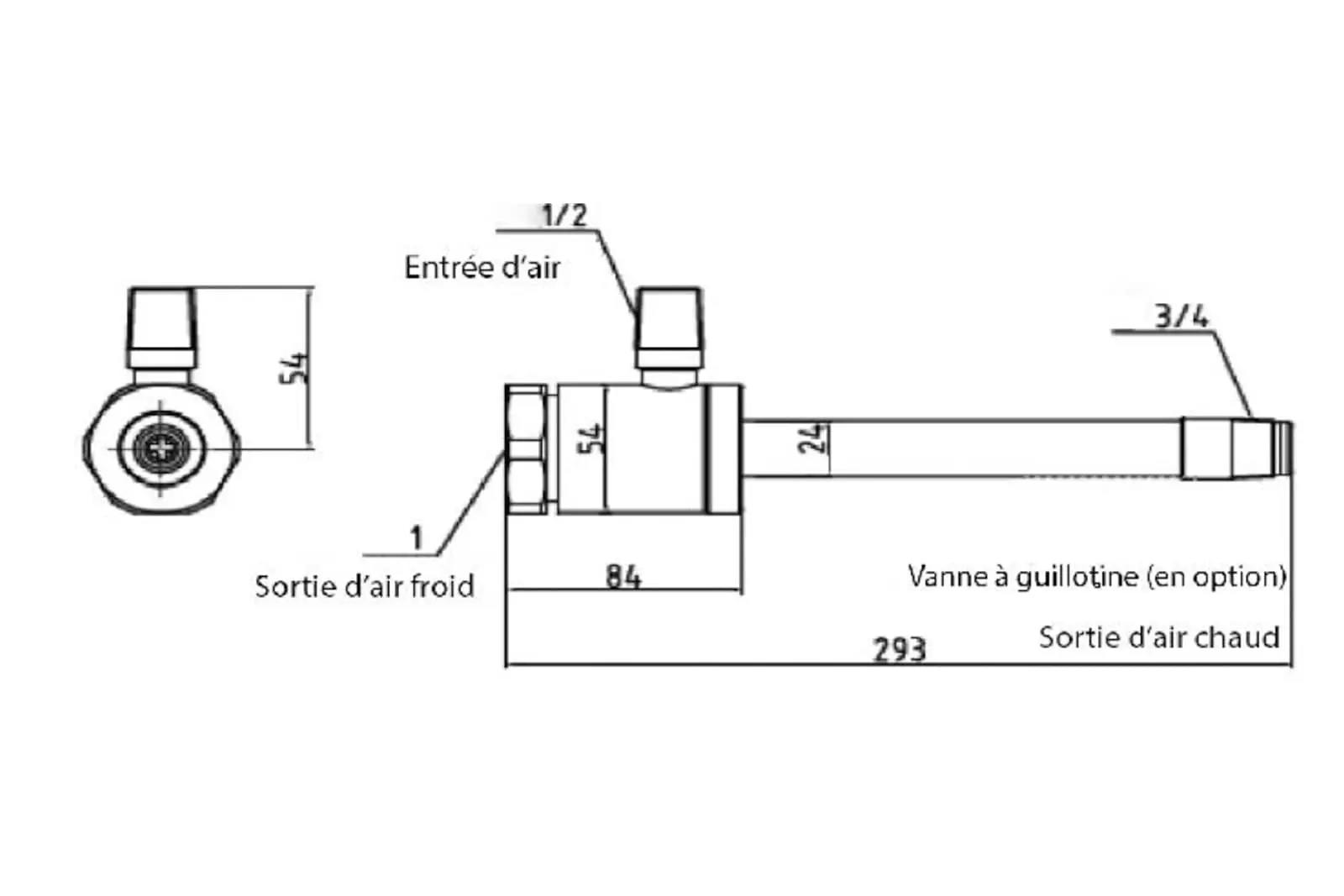

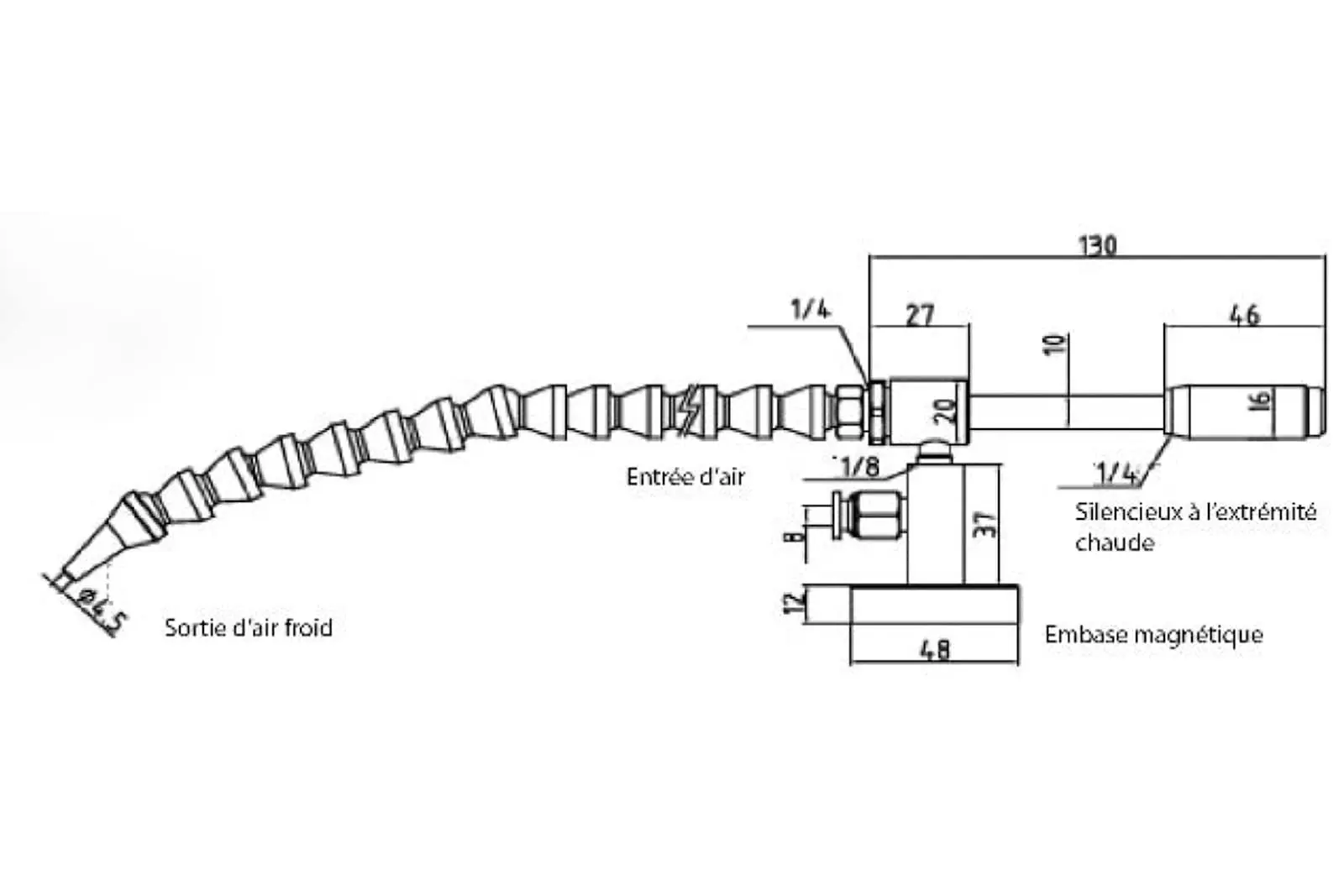

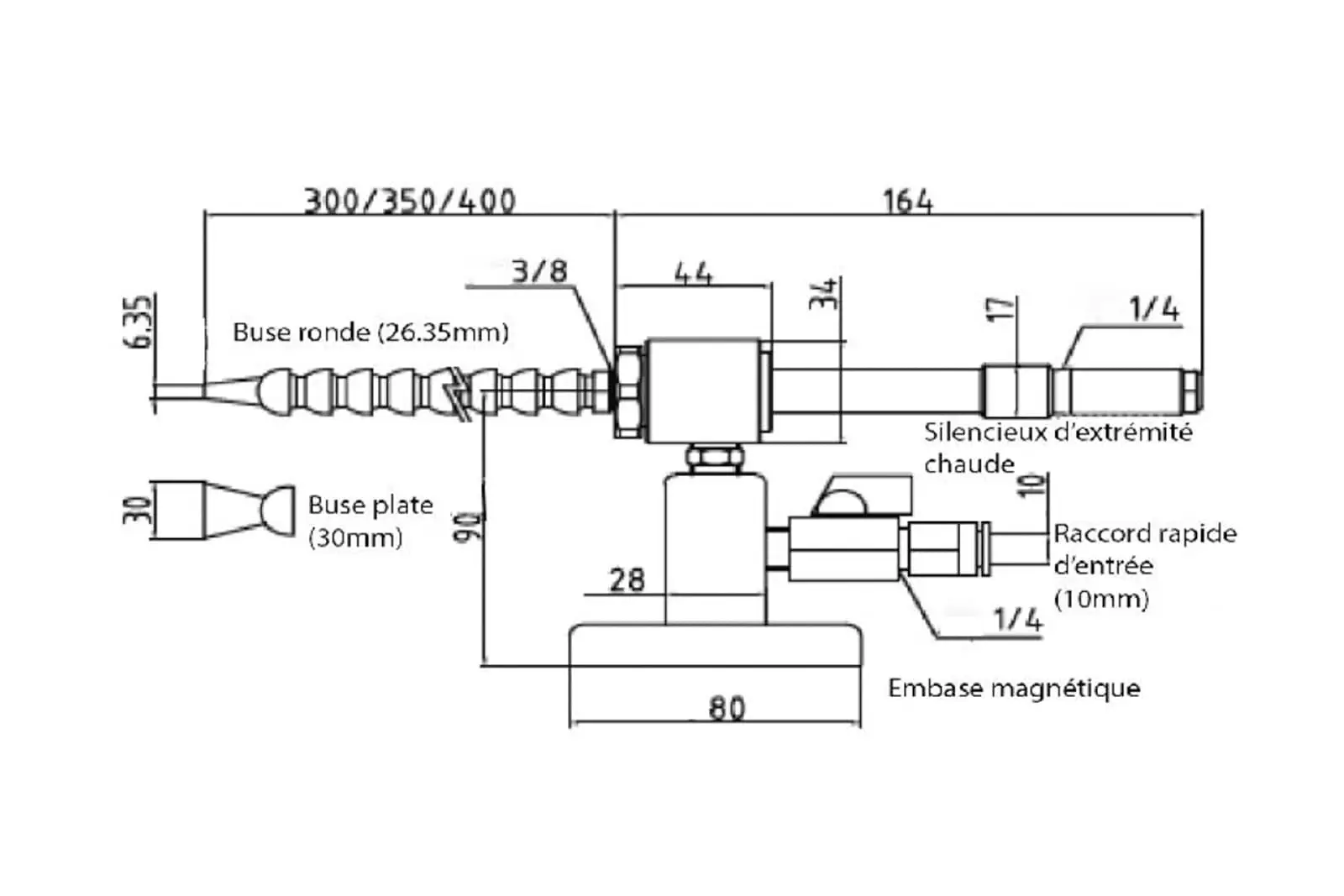

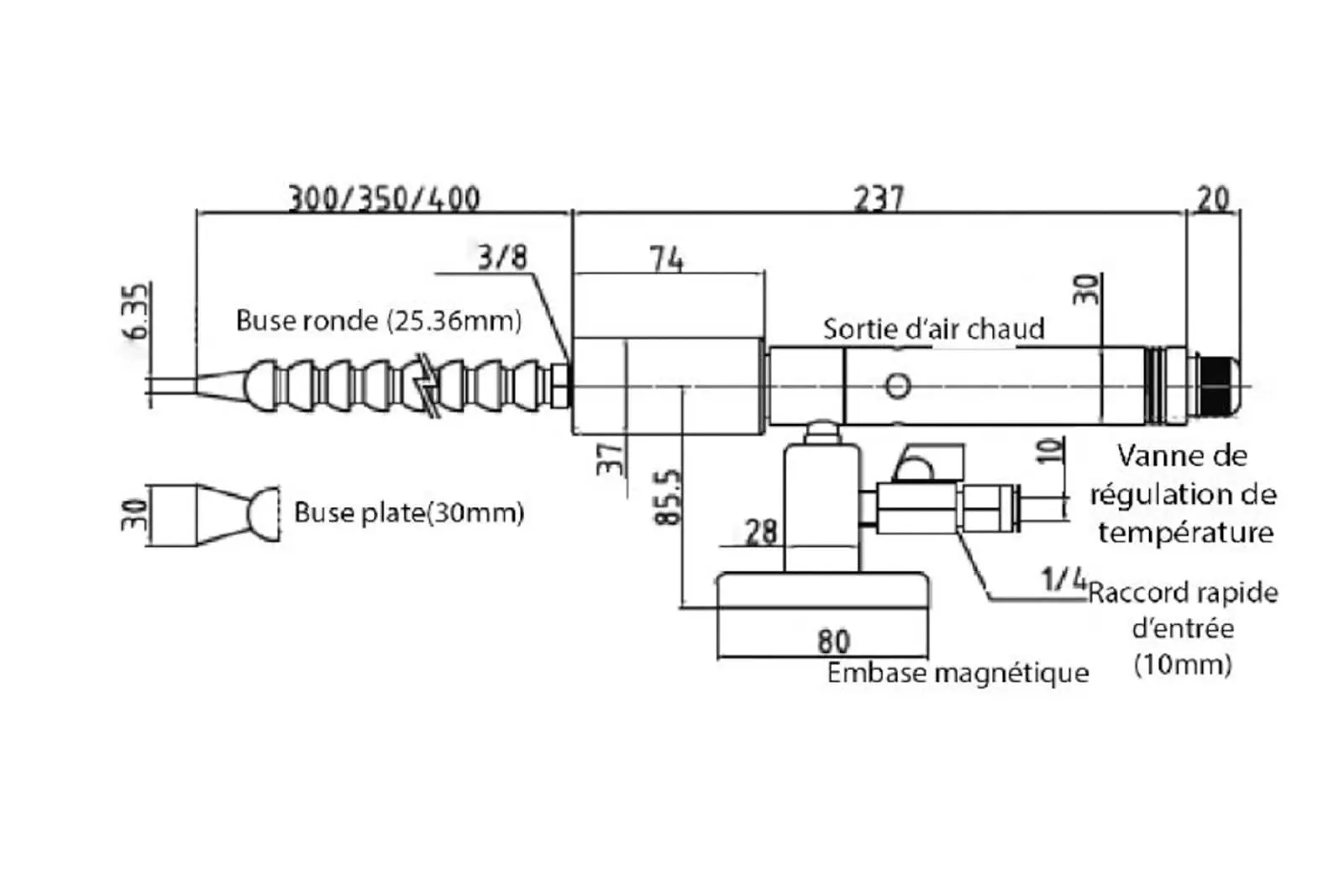

DIMENSIONS TECHNIQUES
APPLICATIONS INDUSTRIELLES
Cooling of tools and electronic components
Maintaining stable temperatures to prevent overheating.
Electrical cabinet cooling
Preventing failures caused by excessive heat.
Machining cooling
Extending tool life and improving the quality of machined parts.
