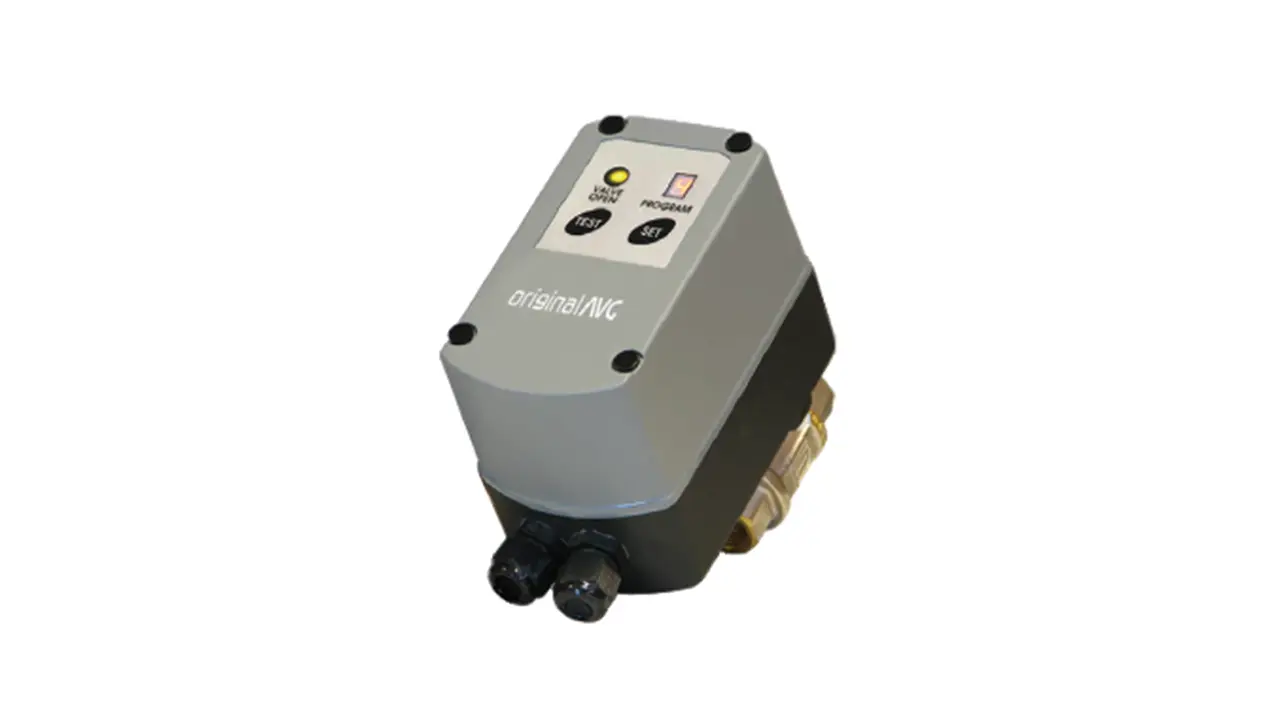

Automatic drains
Serie 37

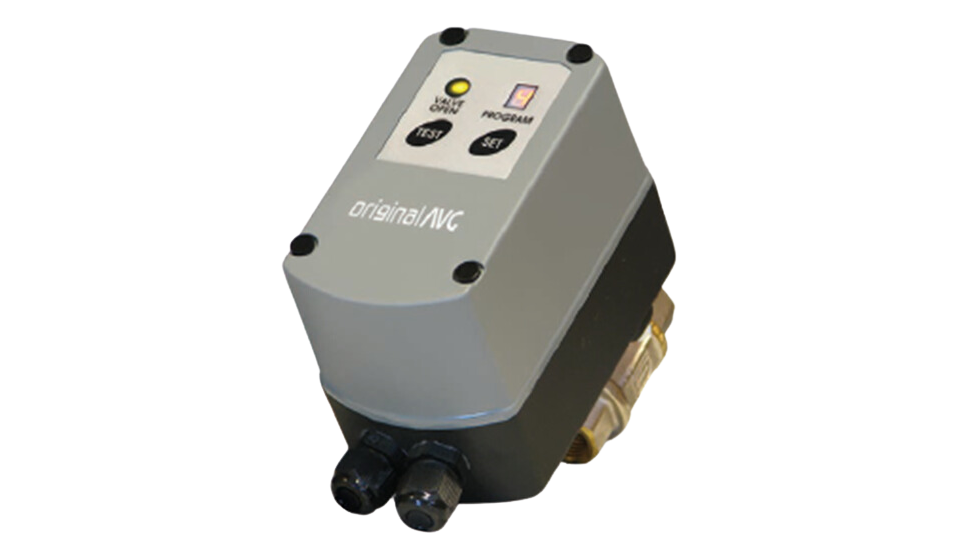

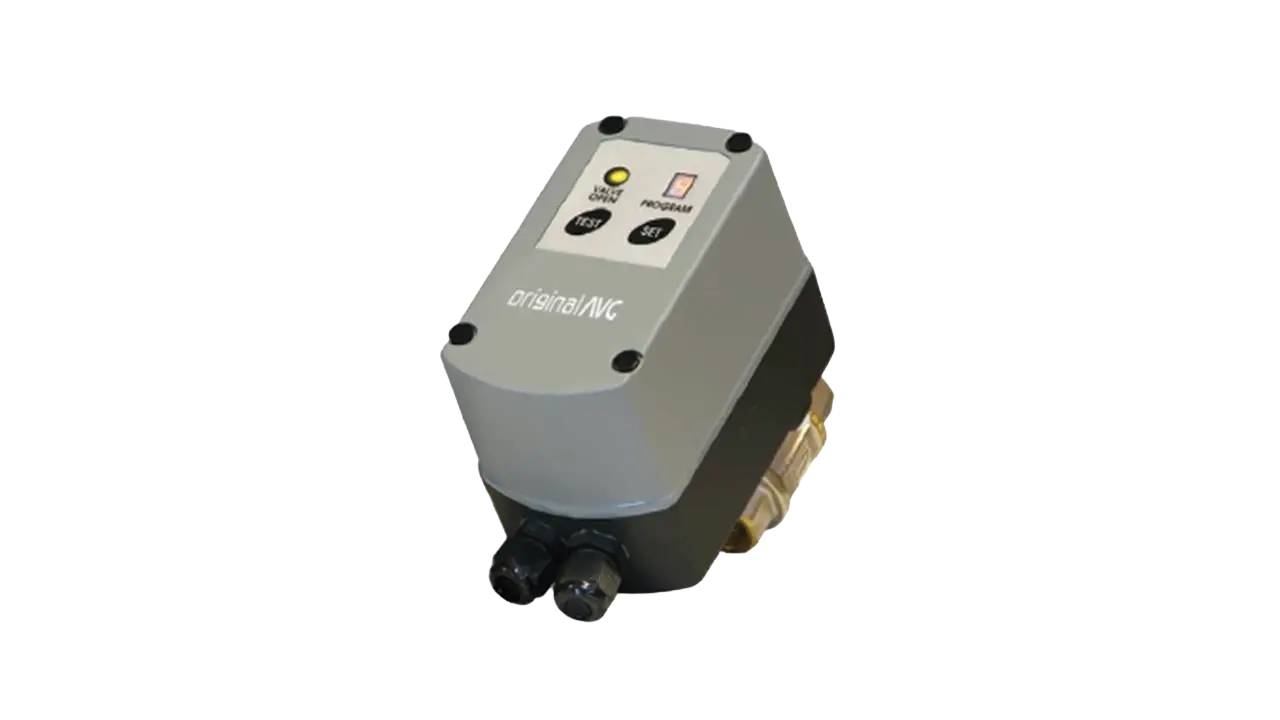

Discover the Series 37 automatic drain, capable of handling extreme volumes of rust and dirt without clogging or jamming.
Operating according to a timer-type drain, a power supply is required. With a passage hole of 12, a 1/2'' BSP inlet connection, and an operating pressure of 0 to 40 bars, this Series 37 automatic drain ensures efficient control in demanding environments.
Technical specifications :
Type |
Compressor capacity |
Pressure |
Voltage options
|
Fluid temperature - ambient
|
Timer range
|
Actuator control
|
Status indication
|
Test function
|
Valve type
|
Motorized ball valve |
All sizes |
0-40 bar
|
24 VDC, 115VAC and 230VAC 50/60hz
|
1-60°C (flluid)1-55°C(ambient) |
7 seconds to 15 minutes (operation) / 4 minutes to 24 hours (stop)
|
SMD technology, ensuring reliability
|
LED
|
Yes
|
2/2-way, motorized ball valve
|
Orifice |
Valve seals |
Inlet connection depth |
Inlet connection depth
|
Repairable valve
|
Valve body material
|
Electrical connection
|
Protection
|
Remote control option
|
Backup battery
|
12 mm |
FPM and Teflon |
1/2'' BSP
|
10 mm
|
Yes
|
Nickel-plated brass and stainless steel
|
Cable
|
Nema4 (IP65)
|
Yes
|
Yes
|
Characteristics: :

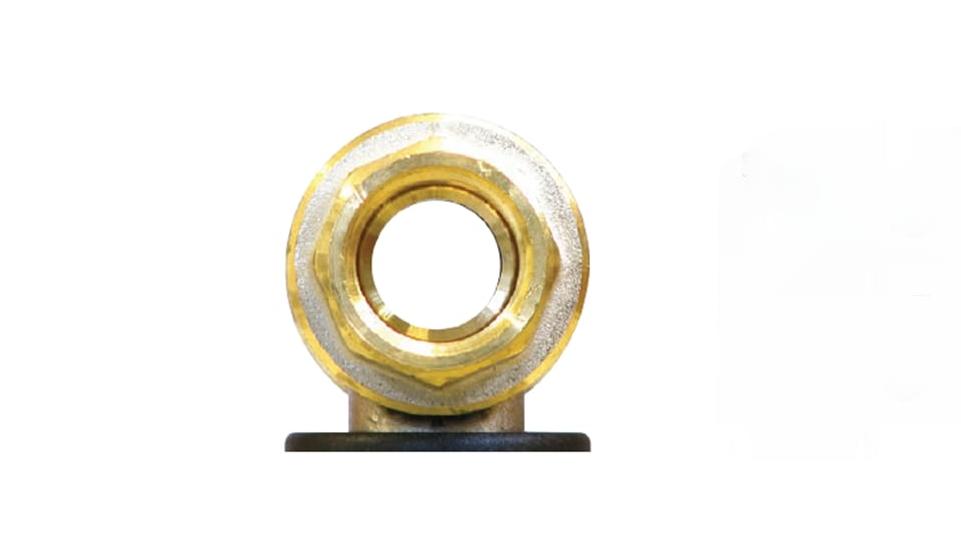

Large 12mm orifice, allowing the passage of large debris.

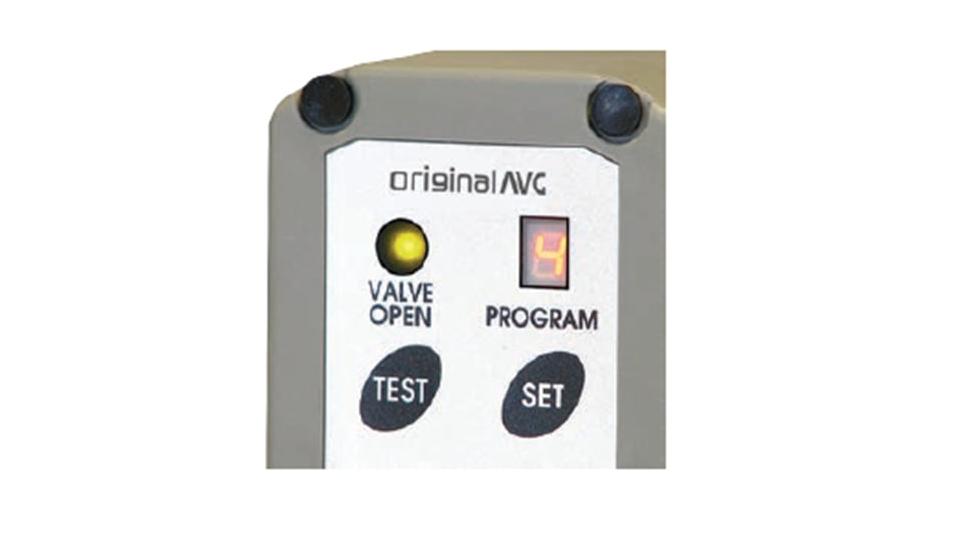

Digital display of the program and status indicator.

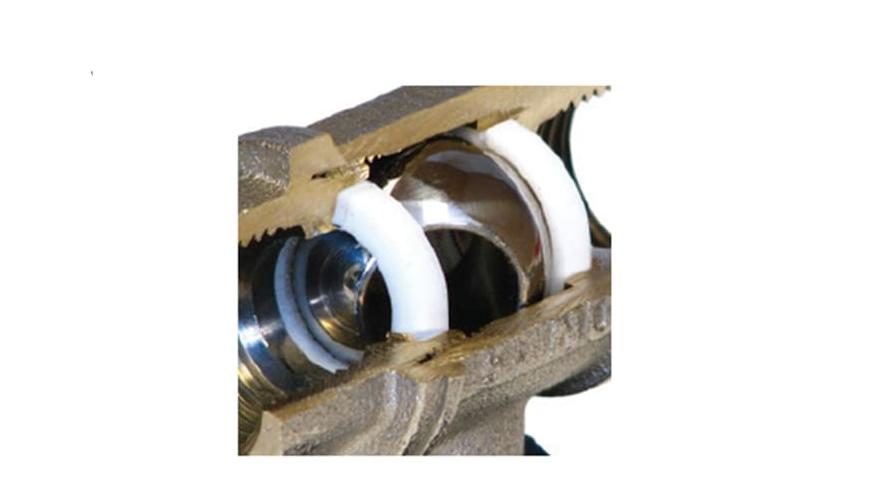

Ball valve, made of stainless steel.

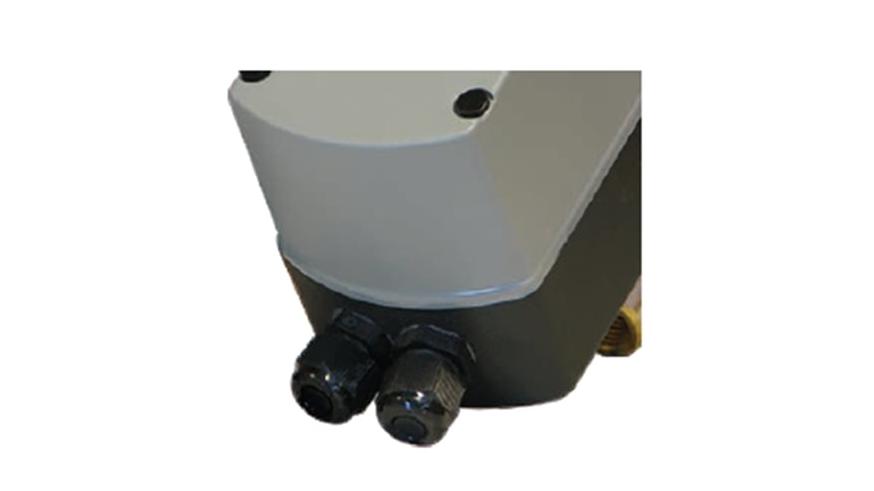

Control option.

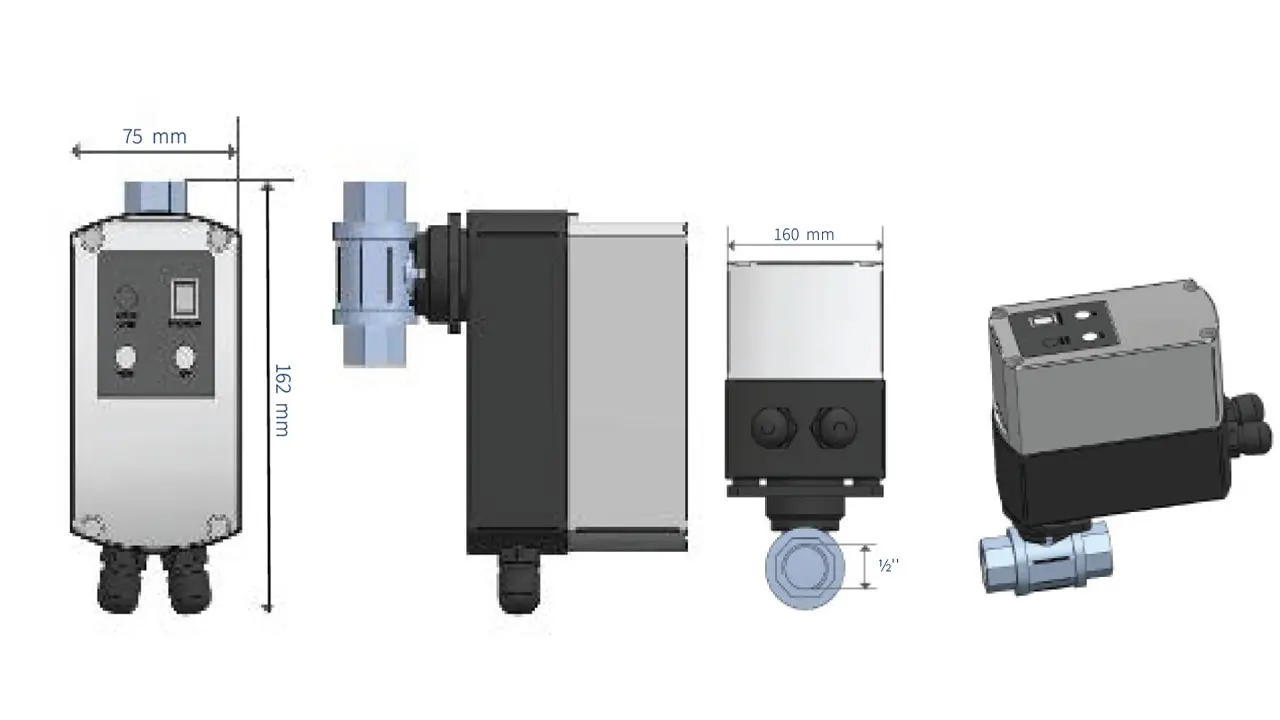

Technical diagram
Box contents :
|
Contents
|
Quantity
|
| AVG37 | 1 |

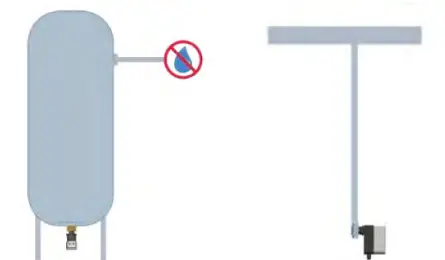

Application :
1 - Compressed Air Tanks
2 - Compressed Air Drops in a Distribution Network
How to order ?
References | 4.5V 24 VDC (6100-079) 4.5V 230 VAC (6100-080) 4.5V 115 VAC (6100-081) |
