Air treatment Automatic Drains Transparent Automatic Drain
Easily monitor your drain’s operation and detect anomalies at a glance.
Quick condensate visualization
Quick detection of malfunctions
Simple and cost-effective installation

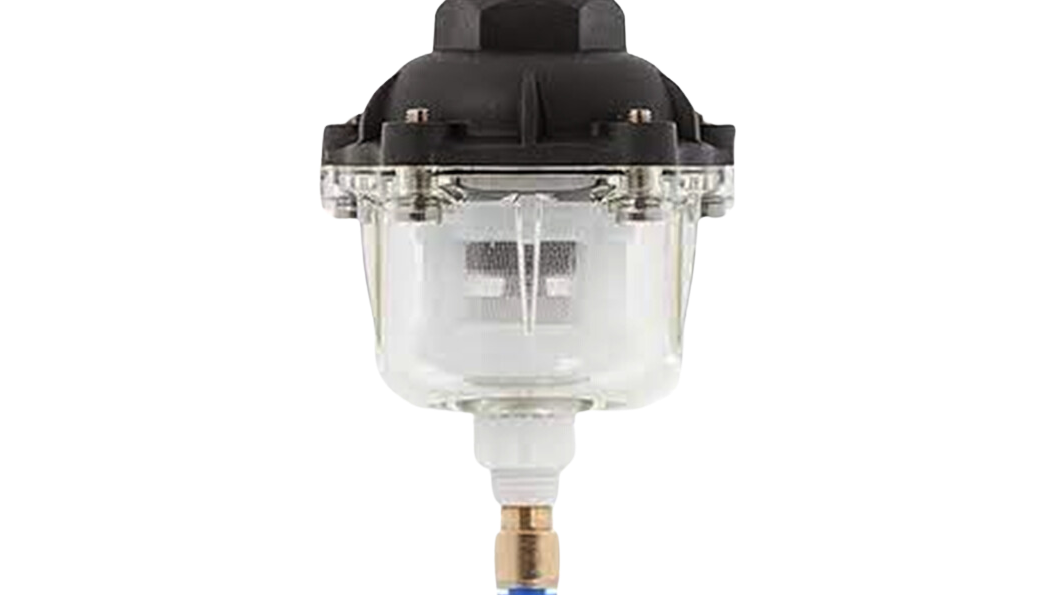

Transparent automatic drain
Discover the transparent plastic automatic drain, designed to ensure the purity of compressed air networks without requiring any external power supply.
Ease of Maintenance
This automatic drain is easy to service and features a 6 mm orifice for optimal efficiency.
Technical Data
With a 1/2'' BSPT inlet connection and an operating pressure ranging from 0 to 10 bar, this drain ensures reliable and consistent control.
Use case – Transparent plastic automatic drain
1
Laboratories and clean environments
2
Installations requiring visual monitoring
3
Preventive maintenance
4
Educational applications
1 - Expel unit
Problems solved
No visibility into whether the drain is operating properly.
“Blind” maintenance.
Late fault detection.
Technical specifications
- Inlet/Outlet connection 1/2'' BSPT
- Pressure 0-10 bar
- Flow rate 0,0425 - 15 m3/hr
- Temperature 1,5-85°C
- Bowl material Plastic
- Port Φ6mm diameter
- Weight 0,6 kg
- Drain Tube Φ ext 6mm
- Drain level 22 ml
- Drain capacity 84 L/h (1.4 L/min) plastic
- Datasheet
Technical Drawing
Box contents:
| Contents | Quantity |
| Float automatic drain | 1 |
| Transparent PVC tube Din 4mm - Dext 6mm - L700mm |
1 Datasheet |
Frequently Asked Questions
A transparent automatic drain allows real-time visual monitoring of condensate discharge in a compressed air system.
Unlike conventional drains, it provides immediate visual control without disassembly or technical intervention. This allows you to :
- verify proper system operation
- quickly detect an anomaly
- identify the presence of water, oil, or contaminants
It is an ideal solution to improve preventive maintenance and system monitoring.
Le drain transparent est particulièrement adapté aux installations où la visibilité et le contrôle sont essentiels.
Il est recommandé pour :
- les laboratoires et environnements propres
- les installations nécessitant une surveillance régulière
- les systèmes d’air comprimé de petite à moyenne taille
- les applications pédagogiques ou de démonstration
Il est idéal lorsque l’on souhaite contrôler rapidement et facilement le fonctionnement du drain.
The transparent automatic drain operates on a simple principle :
- Condensates (water, oil, and particles) accumulate in the body of the drain.
- An internal mechanism automatically triggers the discharge.
- Condensates are discharged outside.
- The user can directly observe the process thanks to the transparent body.
This operation ensures autonomous condensate management with continuous visual monitoring.
A transparent drain is recommended when :
- when visibility of operation is essential
- when maintenance needs to be simplified
- when the environment is clean
- when the need for extreme precision or robustness is limited
However :

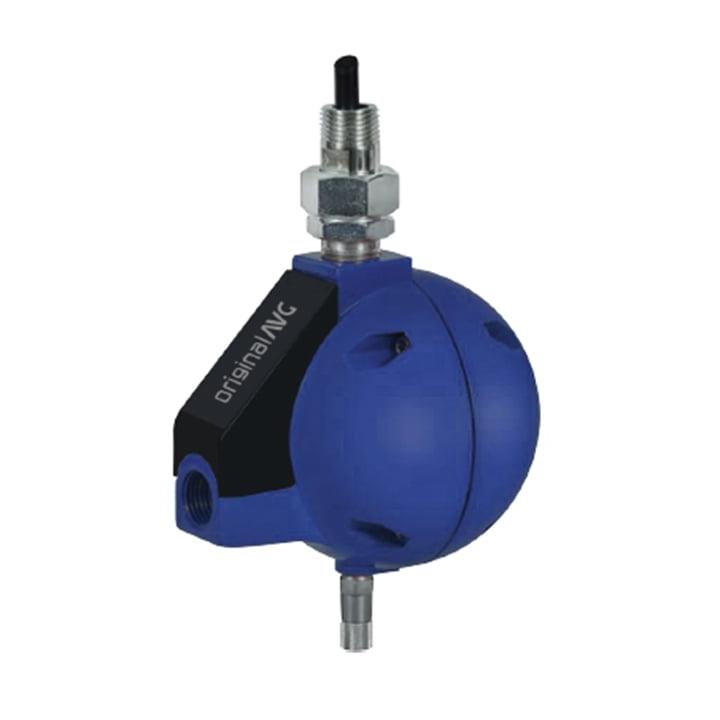

- a float drain is better suited for contaminated environments
- an electronic drain allows for precise adjustment
- a stainless steel drain is recommended for corrosive environments
👉 The choice always depends on your application and operating environment.
Order our products
Reference | 6100 - 023 |

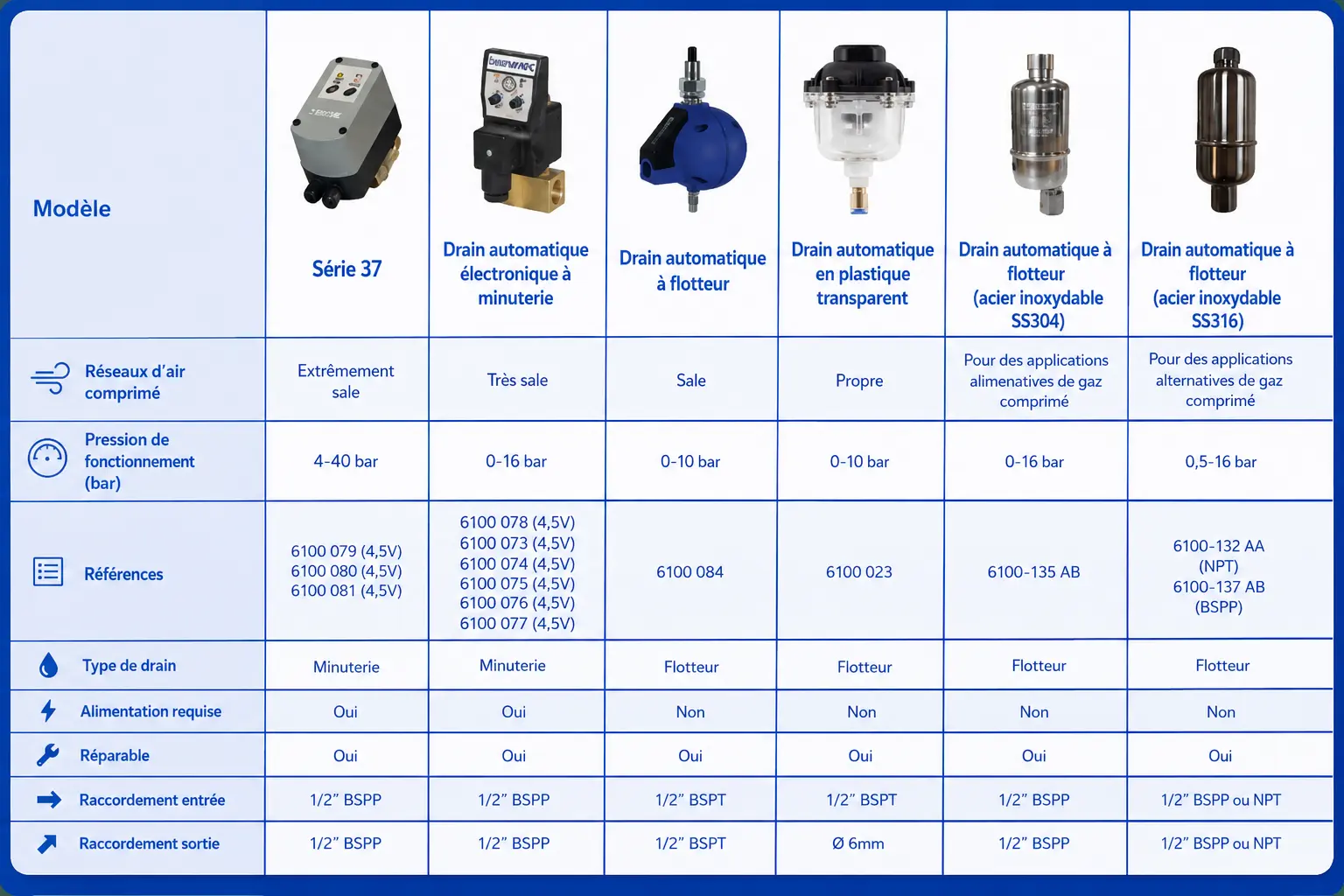

Which type of drain should you choose ?

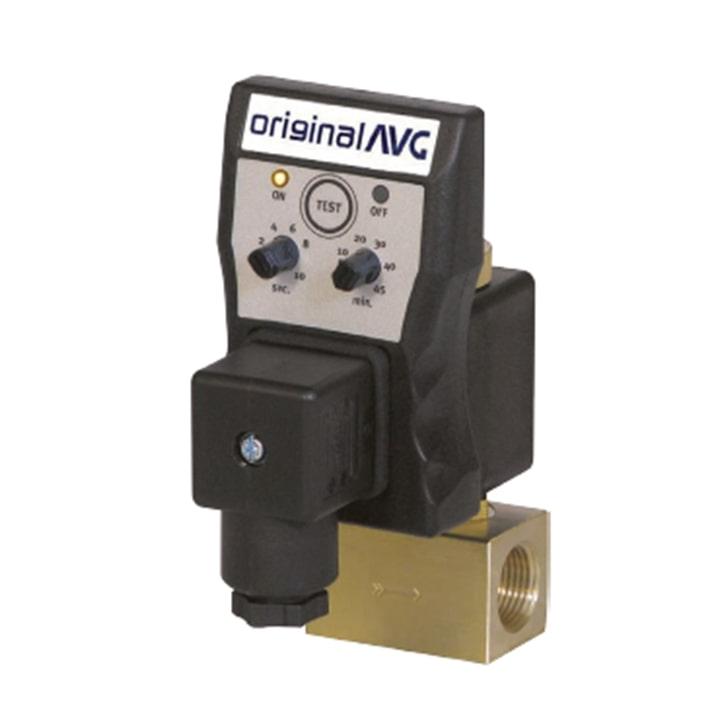

Timer-controlled electronic drain
Ideal for precise control and simple installations.
316 stainless steel float
Maximum corrosion resistance, ideal for chemical and marine environments.
