Air treatment Automatic drains Electronic Timer Automatic Drain
Easily program purge cycles to optimize your compressed air system.
Precise cycle adjustment
Suitable for stable installations
Cost-effective and easy solution

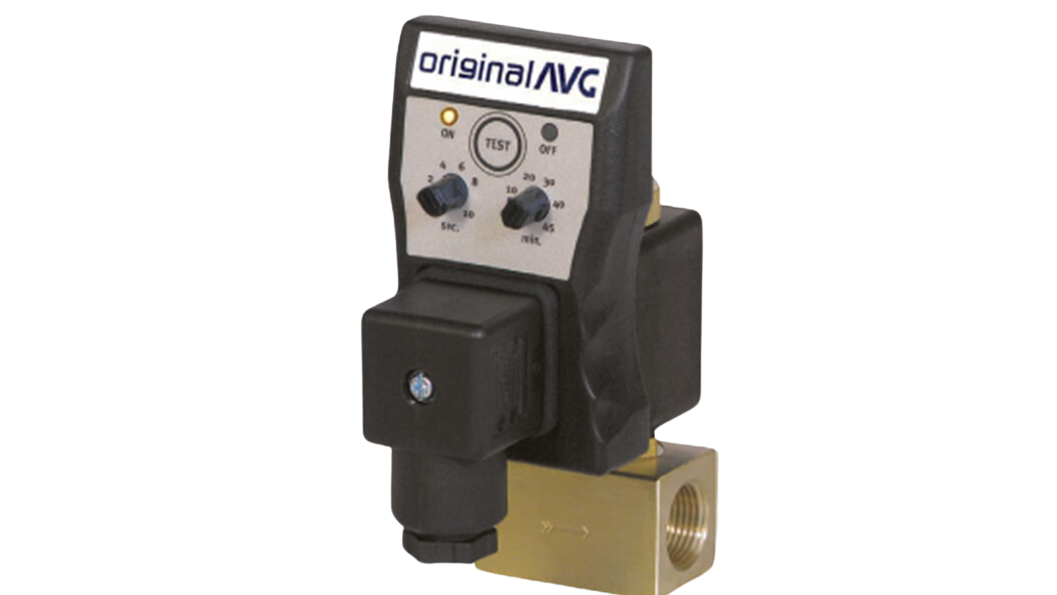

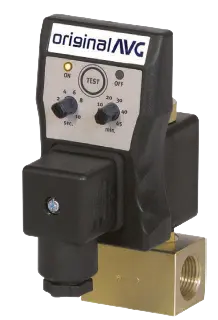

Timer-controlled electronic automatic drain
Discover the electronic timer automatic drain, ideal for compressed air systems with high levels of impurities.
Cleanable and Reusable Filter
Operating on a timed drain principle, it requires an external power supply.
Control in demanding environments
With a 4.5 mm orifice, a 1/2'' BSP inlet connection, and an operating pressure ranging from 0 to 16 bar, this electronic timer automatic drain ensures efficient control in demanding environments.
Use case – Timer-controlled electronic drain
1
Small installations
2
Workshops
3
Simple networks
4
Systems with minimal variations
1 - Expel Unit
2 - Compressed Air Tanks
Problems solved
Manual draining is often forgotten.
Mauvaise gestion des cycles.
Installation simple.
Technical Specifications
- Pressure 0-16 bar
- Fluid temperature 1-55°C
- Timer range 0,5-10s (ON)-0,5-45mn (OFF)
- Supply voltage options 12-380 VAC/DC
- Actuator control Technologie SMD
- Valve type 2/2 ways, direct-acting
- Valve orifice 4,5 mm
- Inlet/Outlet fittings 1/2'' BSPP
- Inlet connection depth 1 cm
- Valve body material Nickel-plated brass
- Datasheet
Function of the test button
Repairable valve
Electronic control
Technical Drawing
Box contents:
| Contents | Quantity |
| Electronic timer-controlled automatic drain. | 1 |
| Brass tree fitting - 1/2'' G. | 1 |
| Transparent braided tube, 12mm inner diameter. | 1 |
| Clamping collar - 13/20mm. | 1 |
| Strainer filter with ball valve 1/2''M and 1/2''F. | 1 Datasheet |
Frequently Asked Questions
The timer-controlled electronic automatic drain is particularly suited for compressed air systems where condensate flow is relatively stable and predictable.
It is recommended for :
- small to medium-sized installations
- clean or low-contamination environments
- systems where simple and regular control of the purge is sufficient
Thanks to its programmable system, it allows precise control of purge cycles (opening time and frequency), making it ideal for standard applications.
It is a cost-effective and easy-to-implement solution for automating condensate discharge.
The timer-controlled electronic drain offers several advantages for compressed air systems :
- Precise adjustment of purge cycles (interval and duration)
- Simple and quick installation
- Cost-effective solution compared to other systems
- Suitable for stable installations
- Automation without manual intervention
It ensures regular condensate discharge, preventing water buildup in the system.
The adjustment of an electronic timer drain is based on two main parameters :
- the opening time (drain duration)
- the interval between two cycles
Proper adjustment allows :
- to efficiently remove condensate
- to prevent compressed air losses
- to optimize network performance
It is recommended to adjust the settings according to :
- the volume of condensate
- the compressor operation
- the operating conditions
Order our products
References | 4.5 V 380VAC (6100-078-AA) 4.5 V 230VAC (6100-073-AA) 4.5 V 115VAC (6100-074-AA) 4.5 V 24VAC (6100-075-AA) 4.5 V 24VDC (6100-076-AA) 4.5 V 12VDC (6100-077-AA) |

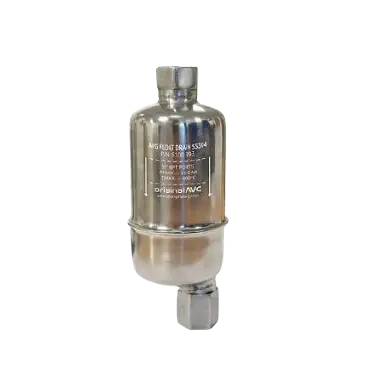

Which type of drain should you choose ?

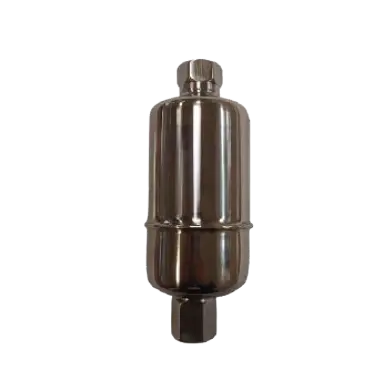

316 stainless steel float
Corrosion-resistant, ideal for chemical and marine environments.
A project ? Let’s talk about it.
Our experts support you in choosing the right drain for your installation.
