Automatic drains
With SS316 stainless steel float

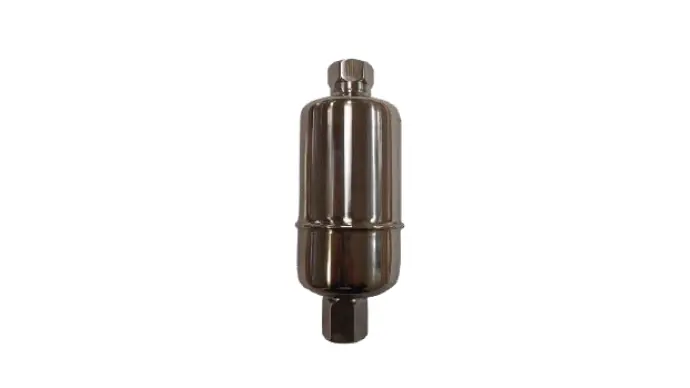

Discover the SS304 stainless steel float-type automatic drain, used in environments where dirt is present in compressed air lines.
With a 1/2'' NPT connection and an operating pressure range from 0.5 to 16 bar, this automatic float drain provides reliable condensate removal even in the most demanding operating conditions.
Manufactured entirely from SS316 stainless steel—including the housing, seat, and internal body—it offers excellent resistance to corrosion and high temperatures up to 425°C, ensuring exceptional durability and long service life.
Compact yet robust, it features a 70 mm diameter, a height of 184 mm, and a weight of only 0.7 kg, making it easy to install and requiring minimal maintenance.
Technical specifications :
- Connection 1/2'' NPT
- Drain outlet 1/2'' NPT
- Operating pressure 0.5-16 bar
- Operating temperature 425°C
- Construction material Stainless steel SS316
- Float Hardened stainless steel
- Valve seat Stainless steel SS316
- Diameter 70 mm
- Height 184 mm
- Weight 0,7 kg
How to order ?
References | 6100-132 |
