FasTest 70 series, sleeve actuated connector.
Custom design to grip over a 9.1mm OD flareexpansion on a nominal 1/4" OD copper tube and seal.
Body size 2, stainless steel construction withNitrile seal materials.
1/8" BSPP media inlet port.
Application 45 bar/Nitrogen proof test & 25bar/Helium sniff test.

FasTest 70 series, sleeve actuated connector.
Custom design to grip over a 16.6mm OD flareexpansion on a nominal 1/2" OD copper tube and seal.
Body size 4, stainless steel construction withNitrile seal materials.
3/8" BSPP media inlet port.
Application 45 bar/Nitrogen proof test & 25bar/Helium sniff test.

FasTest 70 series, sleeve actuated connector.
Custom design to grip over the 29.4mm OD flange intoi the 25mm recess, and seal on the front lead in.
Body size 6, stainless steel construction with Nitrile and machined Neoprene main seal.
Rated for application of 3 bar test pressure with hydrogenated nitrogen media.
Piston in stainless steel

FasTest 70 series, sleeve actuated connector.
Custom design to grip over the 29.4mm OD flange intoi the 25mm recess, and seal on the front lead in.
Body size 6, stainless steel construction with Nitrile and machined Neoprene main seal.
Rated for application of 3 bar test pressure with hydrogenated nitrogen media.
Piston in POM

FasTest 70 series, sleeve actuated connector.
Custom design to grip over a spigot acording to RENAULT nom 01/57-000.
Body size 6, stainless steel construction with Nitrile and machined Neoprene main seal.
Leak test with water + Glycol 50% at 6 bar and 90°C maximum

70 SERIES BODY SIZE 2 TO GRIP AND SEAL 6.35MM (.25") COPPER TUBE WITH SAE 45 DEGREE FLARE. STAINLERSS STEEL HOST MATERIALS.
NEOPRENE SEAL MATERIAL. 1/8" BSPP FEMALE TERMINATION.
25 BAR HELIUM LEAK TIGHT TO E-5CC/SEC.
45 BAR NITORGEN WORKING PRESSURE

70 SERIES BODY SIZE 3 TO GRIP AND SEAL 9.52MM (.375") COPPER TUBE WITH SAE 45 DEGREE FLARE. STAINLERSS STEEL HOST MATERIALS.
NEOPRENE SEAL MATERIAL. 1/4" BSPP FEMALE TERMINATION. 25 BAR HELIUM LEAK TIGHT TO E-5CC/SEC. 45 BAR NITORGEN WORKING PRESSURE

70 SERIES BODY SIZE 3 TO GRIP AND SEAL 9.52MM (.375") COPPER TUBE WITH SAE 45 DEGREE FLARE. STAINLERSS STEEL HOST MATERIALS. NEOPRENE SEAL MATERIAL. 1/4" BSPP FEMALE TERMINATION. 25 BAR HELIUM LEAK TIGHT TO E-5CC/SEC. 45 BAR NITORGEN WORKING PRESSURE

70 SERIES BODY SIZE 4 TO GRIP AND SEAL 16.0MM (.625") COPPER TUBE WITH SAE 45 DEGREE FLARE. STAINLERSS STEEL HOST MATERIALS. NEOPRENE SEAL MATERIAL. 3/8" BSPP FEMALE TERMINATION. 25 BAR HELIUM LEAK TIGHT TO E-5CC/SEC. 45 BAR NITORGEN WORKING PRESSURE REFERENCE

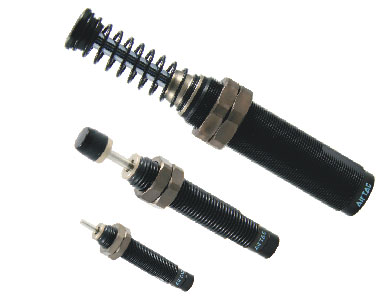

Self Compensated Shock Absorber - Série ACA

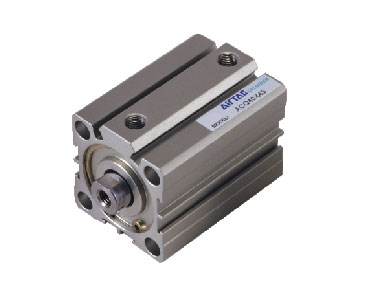

AIRTAC Compact pneumatic cylinder - ACE Series - ISO21287
Double acting
100mm diameter
Port size 1/8''

AIRTAC Compact pneumatic cylinder - ACE Series - ISO21287
Double acting
12mm diameter

AIRTAC Compact pneumatic cylinder - ACE Series - ISO21287
Double acting
125mm diameter
Port size 1/4''

AIRTAC Compact pneumatic cylinder - ACE Series - ISO21287
Double acting
16mm diameter

AIRTAC Compact pneumatic cylinder - ACE Series - ISO21287
Double acting
20mm diameter

AIRTAC Compact pneumatic cylinder - ACE Series - ISO21287
Double acting
25mm diameter

AIRTAC Compact pneumatic cylinder - ACE Series - ISO21287
Double acting
32mm diameter
Port size 1/8''

AIRTAC Compact pneumatic cylinder - ACE Series - ISO21287
Double acting
40mm diameter
Port size 1/8''

AIRTAC Compact pneumatic cylinder - ACE Series - ISO21287
Double acting
32mm diameter
Port size 1/8''
