EMB Solenoid Valves – 26-Station Manifold
PRESSURE REGULATION WITH HIGH FLOW CAPACITY.
Discover our EMB NO/NC solenoid valves for 26-station manifolds, a new generation of high-flow solenoid valves designed for glass industry applications.
Download our catalog
ENGINEERED FOR THE MOST DEMANDING ENVIRONMENTS
Calibrated 3-position manual override : ergonomic operation comparable to the original solution.
Direct fit installation : quick and easy replacement.
Balanced MAC 3-way pilot valve : significantly extended service life.
High flow capacity (3,000 NL/min) in a compact footprint.
Spool valve technology that ensures high flow capacity, reduces the number of components, and enhances reliability.
Reliable operation in the harshest environments.
High resistance to contamination and pressure fluctuations.
Fast and precise switching with exceptionally high repeatability.
High-temperature version rated for operation up to 80°C for the complete valve assembly, including the coil.
Reduced machine downtime for increased productivity.
Fully serviceable solenoid valve with replaceable pilot valve.

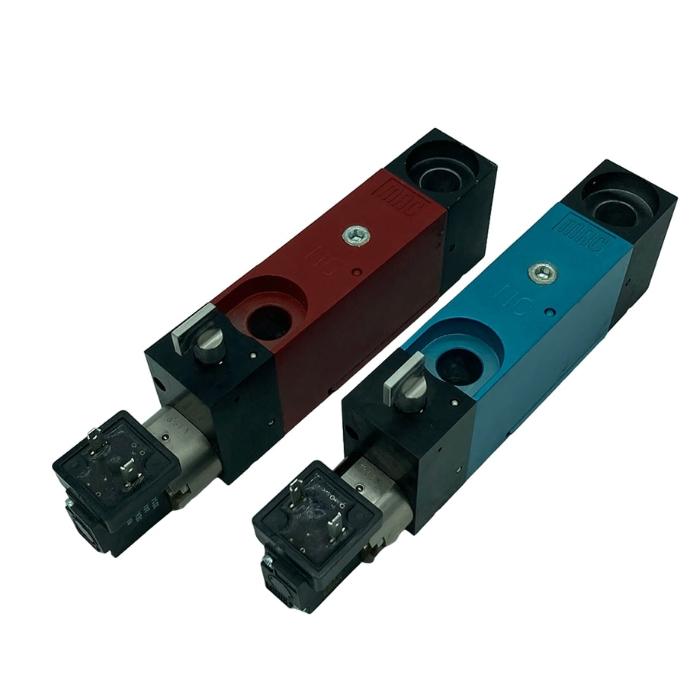

Color coding for easy identification of normally open and normally closed valves (Red = NO / Blue = NC).
Estimated service life (MTBF) of up to 100 million cycles.
Why Choose Our EMB Solenoid Valves ?
MAC Valves EMB solenoid valves have been specifically developed for 26-station manifolds used in the glass industry. They provide a direct replacement for original equipment while delivering improved reliability, superior contamination resistance, and exceptional service life.
Thanks to their patented balanced spool technology, they help maximize equipment availability while minimizing maintenance requirements.
Drop-In Replacement Integration
Designed for drop-in installation, EMB solenoid valves quickly replace existing valves without requiring significant modifications to the installation.
Exceptional Resistance to Contamination
MAC Valves' balanced spool technology ensures reliable operation in glass manufacturing environments exposed to dust, lubricants, and high temperatures.
Service Life of Up to 100 Million Cycles
The balanced pilot valve and robust design reduce component wear, ensuring outstanding reliability even in continuous-duty applications.
Simplified Maintenance
The valve is fully repairable, and the pilot assembly can be replaced independently, reducing maintenance costs and production downtime.
Why Are EMB Solenoid Valves Designed for the Glass Industry?
Glass production lines operate under extremely demanding conditions, including high temperatures, airborne dust, lubricant contamination, and continuous high-speed cycling.
EMB solenoid valves have been specifically engineered to meet these challenges through their balanced spool technology, exceptional contamination resistance, high-temperature components, and an estimated service life of up to 100 million cycles (MTBF).
This design helps reduce production downtime while ensuring maximum availability of IS (Individual Section) glass forming machines.
Download the glass industry catalog
OI Technologies Expert Advice
At OI Technologies, we help industrial manufacturers and machine builders select pneumatic solutions designed for the most demanding environments. Thanks to our expertise in MAC Valves technologies and glass manufacturing applications, we can recommend the configuration best suited to improve equipment reliability while reducing maintenance costs.
Technical Specifications
Response Times
Fluids | Compressed air, vacuum, inert gases |
Pressure range
| External pilot supply, 0 to 3 bar |
Pilot Pressure | 2.5 to 4 bars |
Lubrication
| Not Required |
Air Quality | ISO 8573 - 1743 |
Temperature | Max +80°C |
Flow rate (at 6 bar)
| Max 3000 NL/min |
Bobine | Epoxy encapsulated – Class F wire – Continuous duty rated |
Supply Voltage | -15% to +10% of nominal voltage. |
MOD EP92 | Viton seals, spool, and poppet.High-temperature lubricantManual override designed for the glass industry. |
NC ERT | NC DRT | NO ERT | NO DRT | |
2 bar | 11.4 ms | 9.4 ms | 11.7 ms | 9.6 ms |
3 bar | 9.9 ms | 10.1 ms | 10.2 ms | 10.1 ms |
4 bar | 9.4 ms | 10.6 ms | 9.8 ms | 10.5 ms |
ERT : Duty Rating NC : Normally Closed
DRT : De-energization NO : Normally Open
Ordering Codes
Normally Closed (NC) |
EMB-A1B-BV3-BFE0-CTR Mod. EP92
|
Normally Open (NO) |
EMB-A2B-BV3-BFE0-CTR Mod. EP92
|
Pilot Valve |
TM-DEWJ-0JJ Mod. EP92
|
NC/NO Repair Kit |
K-EM004 / K-EM006
|
Individual Test Manifold |
KE-EMA03
|
Which Solenoid Valve Should You Choose?
55 to 59
Versatile solutions for industrial applications.
Flow Rate: 2,200 to 60,000 NL/min (2.2 to 60.0 Cv)
67 to 69
Versatile solutions for industrial applications.
Flow Rate: 20,000 to 60,000 NL/min (20.0 to 60.0 Cv)
Series 54 – 21-Station Manifold
A new generation of high-flow valve manifolds.
Flow Rate: 5,000 NL/min (5 Cv)
54 LG
Pressure regulation with high-flow capacity.
Flow Rate: 12,500 NL/min (12.5 Cv)
53 à 54
Solutions compactes pour applications standards
1200 Nl/min (1.2 Cv) à 5000 Nl/min (5.0 Cv)
ISO 1.2.3
Outstanding resistance to contamination.
ISO 1 = 1600 Nl/min (1.6 Cv)
ISO 2 = 3000 Nl/min (3 Cv)
ISO 3 = 6300 Nl/min (6.3 Cv)
Applications Across Multiple Industries...
2
Industrial Automation
Precise control of actuators and pneumatic systems.
3
Special-Purpose Machinery
Precise control of automated cycles and motion.
4
Packaging & Material Handling
Reliable control in conveyor systems.
5
Chemical Industry
Fluid Handling and Critical Applications.
6
Energy & Environment
Robust Solutions for Demanding Environments.
Complete your installation...
Pulse Valves
Discover our range of pulse valves designed for industrial dust collection systems. Reliable and high-performance, they provide fast, precise control of compressed air pulses to optimize filter cleaning and maximize the efficiency of your dust collection equipment.
Learn more
Proportional Solenoid Valves
Precisely control flow or pressure with our proportional solenoid valves. Ideal for applications requiring accurate control and continuous regulation.
Cartridge Solenoid Valves
Optimize equipment integration with our cartridge solenoid valves. Compact, high-performance, and reliable, they meet the demands of automated machines and systems.
Learn more
EXPEL Compressed Air Treatment
Ensure clean, maintenance-free compressed air with the EXPEL range. EXPEL compressed air filters provide consumable-free filtration with no maintenance required.
WEBSHOP OI TECHNOLOGIES
Order Your Products Online
Discover our industrial solutions and place your order in just a few clicks.
Frequently Asked Questions (FAQ)
Here are some frequently asked questions about EMB solenoid valves for 26-station manifolds.
EMB solenoid valves have been designed as direct replacements for existing solutions while providing :
- improved repeatability,
- extended service life,
- une meilleure résistance à la contamination,
- improved resistance to contamination,
- reduced machine downtime.
The replacement can be carried out quickly without major modifications to the existing installation.
Unlike traditional cartridge valve technologies, spool valve technology provides high flow capacity in a compact footprint, reduces the number of components, improves resistance to contaminants, enhances reliability, and delivers excellent repeatability. This design helps reduce maintenance costs and improve equipment availability.
MAC Valves EMB solenoid valves offer an estimated service life (MTBF) of up to 100 million cycles.
This extended service life helps reduce maintenance interventions and increase equipment availability.
