High-Flow Solenoid Valves
Series 67, 68 & 69
Pneumatic solenoid valves designed for very high-flow applications, demanding industrial environments, and high-speed machinery.
Download our catalog
Solenoid Valves and Directional Control Valves MAC Valves Solenoid Valves Series 67, 68 & 69
DESIGNED FOR THE MOST DEMANDING ENVIRONMENTS
3/2 solenoid valve with new patented 5/2 pilot valve, generating maximum shifting force in both directions.
Balanced design ensuring high flow, speed, and consistency (unaffected by pressure variations).
Vulcanized low-friction spool sliding in a mirror-finish bore.
Scraper effect prevents sticking.
Estimated lifetime: 50 million cycles (MTBF).
Repair kit available for complete valve.
Remote electrical and pneumatic actuation versions available.

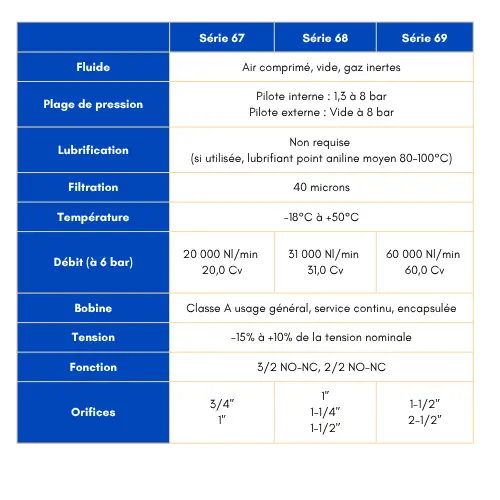

Technical Specifications

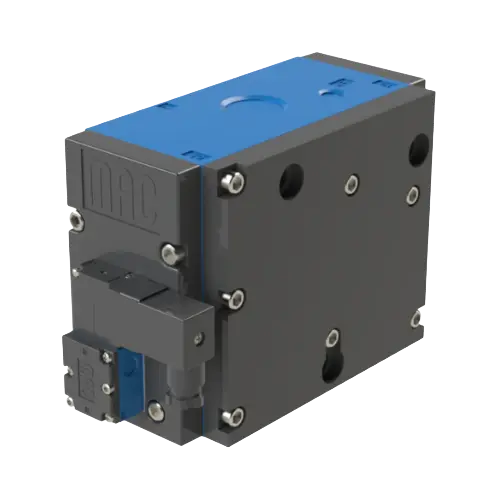

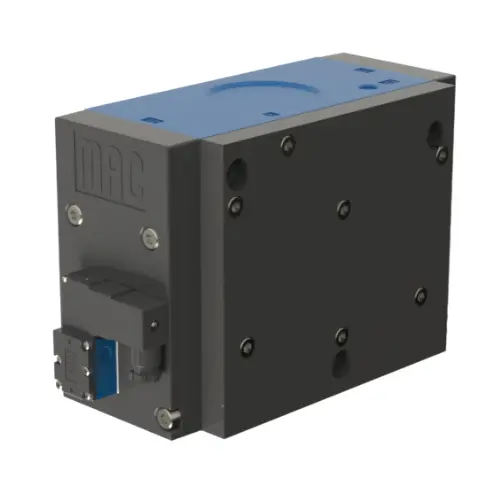

Serie 67 | Serie 68 | Serie 69 | |
Fluids | Compressed air, vacuum, inert gases | Compressed air, vacuum, inert gases | Compressed air, vacuum, inert gases |
Orifice Diameter | 26.8 mm | 33.4 mm | Jusqu'à 44 mm |
Operating Pressure | 2.5 to 8.5 bar | 2.5 to 8.5 bar | 2.5 to 8.5 bar |
Temperature | -18°C to +80°C | -18°C to +80°C | -18°C to +80°C |

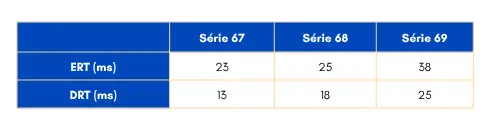

Response Time | Ultra-rapides | Ultra-rapides | Ultra-rapides |
Flow rate (at 6 bar)
| 20 000 NL/min | 31 000 Nl/min | Jusqu'à 60 000 NL/min |
Serie 67 | Serie 68 | Serie 69 | |
Electrically Actuated Version | 67A-A1-xxx-DM-DEWx-xxx / GL01 | 68A-A1-xxx-DM-DEWx-xxx / GL01 | Contact us |
Electrical Repair Kit | K-67001 Mod 446K | K-68001 Mod 446K | |
Pneumatically Actuated Version | 67A-A3-xRx-Rx / EB18 | 68A-A3-xRx-Rx / EB18 | |
Pneumatic Repair Kit | K-67001 / 446K | K-68001 / 446K |
Patented technology driving performance
Patented 5/2 pilot valve
Maximum switching power for intensive applications
MAC Valves coil
High responsiveness for driving heavy loads
Pressure balancing
Optimal stability even at high flow rates
Balanced spool
Reliable performance in demanding industrial conditions
Multi-Industry Applications...
Optical Sorting
Optimize your optical sorting systems with ultra-fast solenoid valves ensuring precision, repeatability, and high throughput—even in the most demanding environments.
Glass Industry
Improve the reliability and performance of your glass manufacturing machines with pneumatic solutions designed to withstand high-speed cycles and extreme conditions.
Pick and place
Increase the speed and precision of your pick-and-place systems with solenoid valves offering ultra-fast response times and perfect repeatability.
Special Machines
Benefit from pneumatic solutions tailored to your specific machinery, with customized performance to meet the most complex constraints.
Focus: The Pick and Place Industry
MAC Valves Series 67 to 69 solenoid valves stand out for their ability to handle high flow rates and heavy loads in the most demanding industrial environments. They deliver power, reliability, and performance to ensure optimal operation—even in intensive applications.
Faster Cycles
Maximum Precision
Simplified Integration
Reduced Maintenance
Focus : The Glass Industry...
Series 67 and 69 are specifically designed for IS machines used in glass container manufacturing.
Improved Production Throughput
Reduced Machine
Downtime
Improved Blowing
Performance
High-Temperature
Resistance
Frequently Asked Questions
Here are some common questions about Series 67 to 69.
A high-flow solenoid valve helps optimize pneumatic performance, improve system responsiveness, and maintain stable production in high-demand applications.

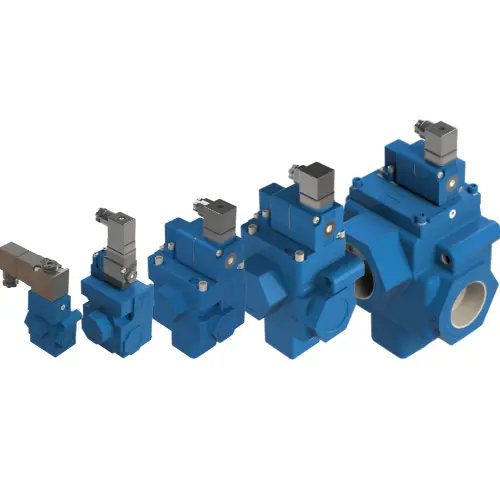

Series 55 to 59 are designed for compact and high-speed applications, while Series 67 to 69 are dedicated to applications requiring high flow rates and increased power.
The selection depends on several criteria: required flow rate, cycle rate, environment, and technical constraints. Our experts can assist you in defining the most suitable solution.
