Compressed air filter

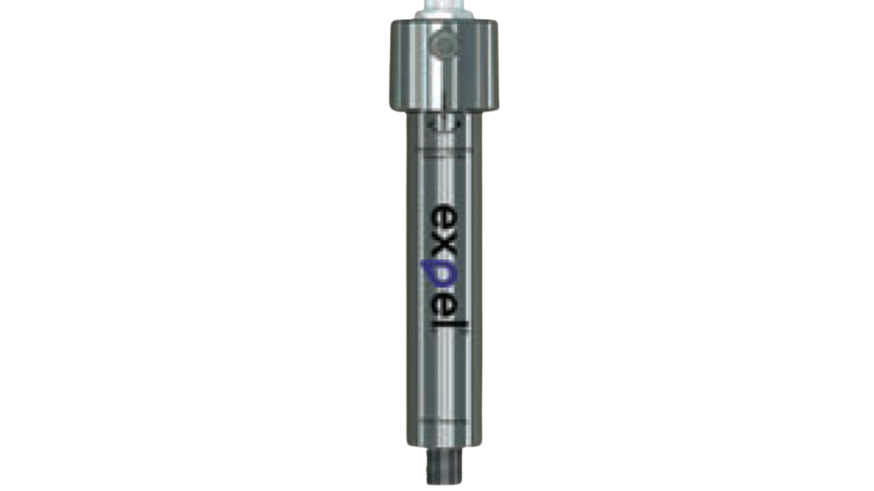

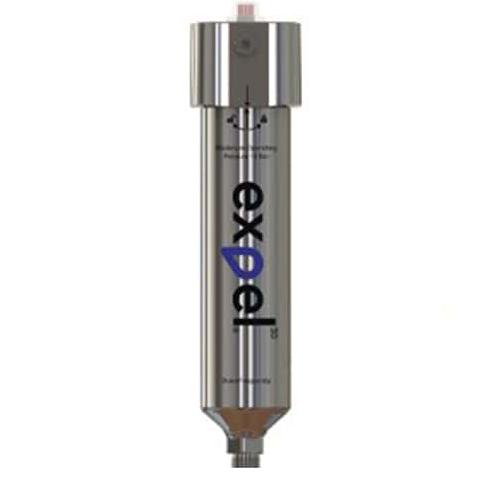

Expel 3
Discover Expel 3: a revolutionary approach to compressed air filtration! Designed with expertise in fluid dynamics, Expel 3 optimizes filtration by eliminating the need for filter replacement.
Achieve 99.9999% performance and fully protect your pneumatic equipment from liquid water, oil emulsions, and solid particles down to 1 micron, all in a single compact unit.
Expel 3 delivers high performance throughout its lifetime without requiring replacement parts.
Its installation and maintenance are simplified, as it is a washable and reusable compressed air filter, fully disassemblable.
This allows you to achieve significant savings thanks to its consumable-free technology, no external energy input, and maintaining very low pressure drop.
Its exclusive features include a patented design compliant with ISO12500 standards, a stainless steel body and head, and an optional pressure gauge.
Expel filter specifications :
Performance
High performance maintained throughout the filter’s lifespan.
No moving parts — eliminates failure risks.
No tiny apertures prone to clogging.
Installation & Maintenance
Easy to install and maintain.
World’s first washable and reusable compressed air filter.
Fully disassemblable for thorough cleaning and inspection.
Cost Savings
No ongoing consumable costs.
No external energy source required.
No increase in pressure drop over time.
Additional Features
Patented design tested to ISO 12500 standards.
Stainless steel body and head.
Optional pressure gauge available.
Technical specifications of Expel 3 :
Flow rate |
Inlet connection |
Pressure |
Temperature | Recommended temperature | Inlet temperature |
Drain connection |
Body materials |
Internal materials
|
Battery assembly |
Qty of automatic drains |
Weight out of the box |
Pressure drop |
1,7 - 15 m3/hr |
1/4’’ |
1-15 bar |
0 to 80°C | 35°C | 35°C |
1/2''
|
SS 316
|
ABS
|
No
|
1
|
0,8 kg
|
0,1 bar
|
Technical diagram :
Box contents:
| Contents | Quantity |
| Expel | 1 |
| Mounting bracket | 1 |
| Bolts | 4 |
| Fastening screws | 4 |
| Plastic wall socket | 4 |
References

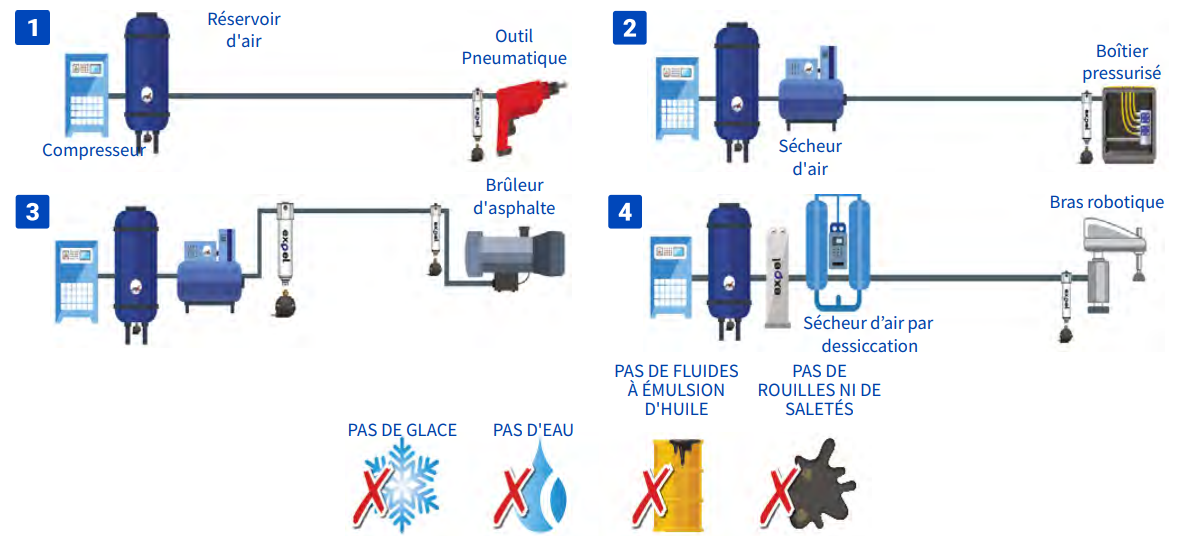

Where to install Expel ?
Learn more about Expel...
As the creator and manufacturer of the Expel compressed air filter, Original AVG is at the forefront of filtration technology.
.
For over 25 years, the company has been dedicated to developing innovative solutions in the field of compressed air and filtration systems. The goal is to provide customers with high-value-added solutions.
