Compressed air filter
Expel 60M
Discover Expel 30: a revolutionary approach to compressed air filtration! Designed with expertise in fluid dynamics, Expel 30 optimizes filtration by eliminating the need for filter replacements.
Achieve 99.9999% performance and fully protect your pneumatic equipment from liquid water, oil emulsions, and solid particles down to 1 micron, all in a single compact unit.
Expel 30 delivers high performance throughout its entire lifespan without requiring replacement parts.
Its installation and maintenance are simplified, as it is a washable and reusable compressed air filter, fully disassemblable.
This enables you to achieve significant savings, thanks to its consumable-free technology, no external energy input, and very low pressure drop.
Its exclusive features include a patented design compliant with ISO12500 standards, a stainless steel body and head, and an optional pressure gauge.
Expel 60M Filter Features
Performance
High performance maintained throughout the filter’s lifespan.
No moving parts — eliminates failure risks.
No tiny apertures prone to clogging.
Installation & Maintenance
Easy to install and maintain.
World’s first washable and reusable compressed air filter.
Fully disassemblable for thorough cleaning and inspection.
Cost Savings
No ongoing consumable costs.
No external energy source required.
No increase in pressure drop over time.
Additional Features
Patented design tested to ISO 12500 standards.
Stainless steel body and head.
Optional pressure gauge available.
Technical Specifications - Expel 60M :
- Inlet/Outlet Connection 1'', 1-1/2'' or 2'' BSPT
- Drain Connection 1/2'' BSPT
- Flow Rate 6,8 - 102 m3/hr
- Operating Pressure 1-15 bar
- Operating Temperature 0 à 80°C
-
- Body Material Stainless Steel SS304
-
- Internal Materials Yes
- Number of Drains Required 2

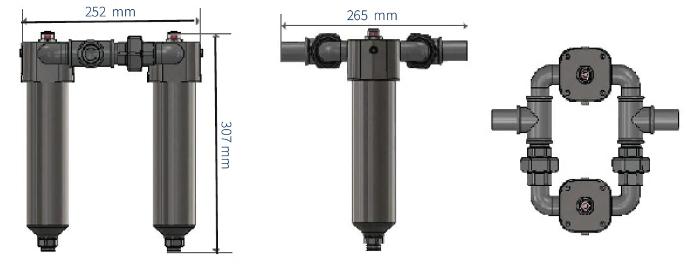

Technical diagram :
Box contents: - Plastic manifold :
| Contents | Quantity |
| Expel Battery | 1 |
| Mounting bracket | 1 |
Box contents - Zinc-plated manifold :
| Contents | Quantity |
| Battery | 1 |
References
Model | References | Manifold | Manifold Piping | Mounting Bracket | Connection Dimensions | Required Drains |
EXPEL 60 M | 6001-014-AA 6001-014-AB 6001-014-AC 6001-011-BA 6001-011-BB 6001-011-BC 6001-012-AA 6001-012-AB 6001-012-AC | Yes | Plastic Plastic Plastic Zinc-plated Zinc-plated Zinc-plated Stainless Steel Stainless Steel Stainless Steel | Yes | 1'' BSPT 1 1/2'' BSPT 2'' BSPT 1'' BSPT 1 1/2'' BSPT 2'' BSPT 1'' BSPT 1 1/2'' BSPT 2'' BSPT | 2 |
Where to install Expel ?
Learn more about Expel...
As the creator and manufacturer of the Expel compressed air filter, Original AVG is at the forefront of filtration technology.
For over 25 years, the company has been dedicated to developing innovative solutions in the field of compressed air and filtration systems. The goal is to provide customers with high-value-added solutions.
Learn more about Original AVG
