Air treatment EXPEL Air Filter EXPEL 3
Product Description
Discover Expel 3: a revolutionary approach to compressed air filtration. Designed using advanced fluid dynamics expertise, Expel 3 optimizes filtration while eliminating the need for filter replacement. Achieve 99.9999% performance and fully protect your pneumatic equipment against liquid water, oil emulsions, and solid particles down to 1 micron—all in a single compact unit.
Cleanable and Reusable Filter
Its installation and maintenance are simplified, as it is a washable and reusable compressed air filter, fully disassemblable.
Cost Savings
This enables you to achieve significant savings, thanks to its consumable-free technology, no external energy input, and very low pressure drop.
Exclusive Features
Its exclusive features include a patented design compliant with ISO12500 standards, a stainless steel body and head, and an optional pressure gauge.
EXPEL 30 Features
Performance
High performance maintained throughout the filter’s lifespan.
No moving parts — eliminates failure risks.
No tiny apertures prone to clogging.
Installation & Maintenance
Easy to install and maintain.
World’s first washable and reusable compressed air filter.
Fully disassemblable for thorough cleaning and inspection.
Cost Savings
No ongoing consumable costs.
No external energy source required.
No increase in pressure drop over time.
Additional Features
Patented design tested to ISO 12500 standards.
Stainless steel body and head.
Optional pressure gauge available.
EXPEL 30 Technical Specifications
- Inlet/Outlet Connection 3/4" & 1/2" reduc BSPT
- Drain Connection 1/2'' BSPT
- Flow Rate 6,8 - 51 m3/hr
- Operating Pressure 1-15 bar
- Operating Temperature 0 to 80°C
-
- Body Material Stainless Steel SS304
-
- Manifold Assembly No
- Number of Drains Required 1

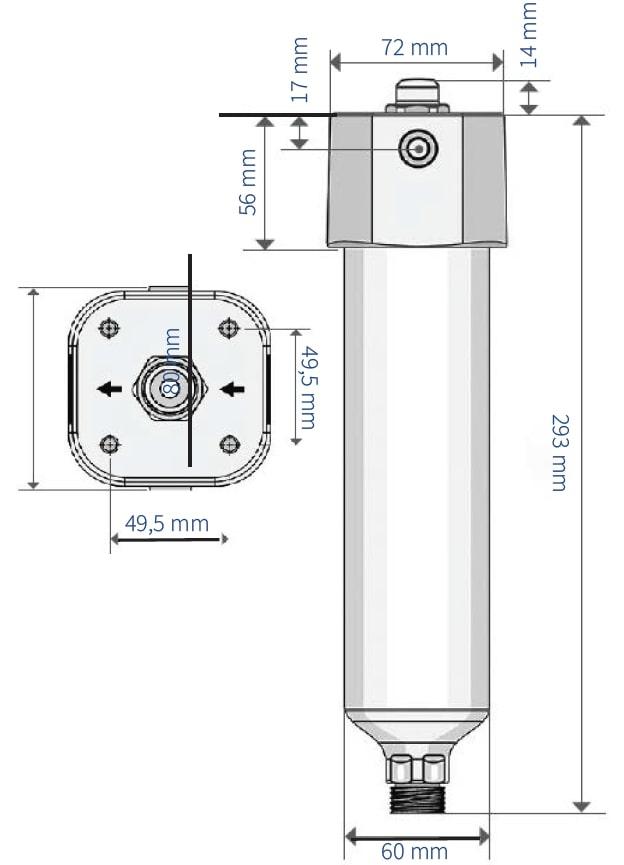

Technical Drawing
Box contents:
| Contents | Quantity |
| Expel | 1 |
| Mounting bracket | 1 |
| Bolts | 4 |
| Fastening screws | 4 |
| Plastic wall socket | 4 |
References
Model | References | Manifold Piping | Mounting Bracket |
EXPEL 30 | 6000-003-AA | X | Yes |
EXPEL Installation
