The performance of MAC Valves pulse valves serving your most demanding environments.
Ultra-fast pulse for optimal filter cleaning
Proven reliability for continuous operation in demanding environments
Robust design minimizing maintenance operations

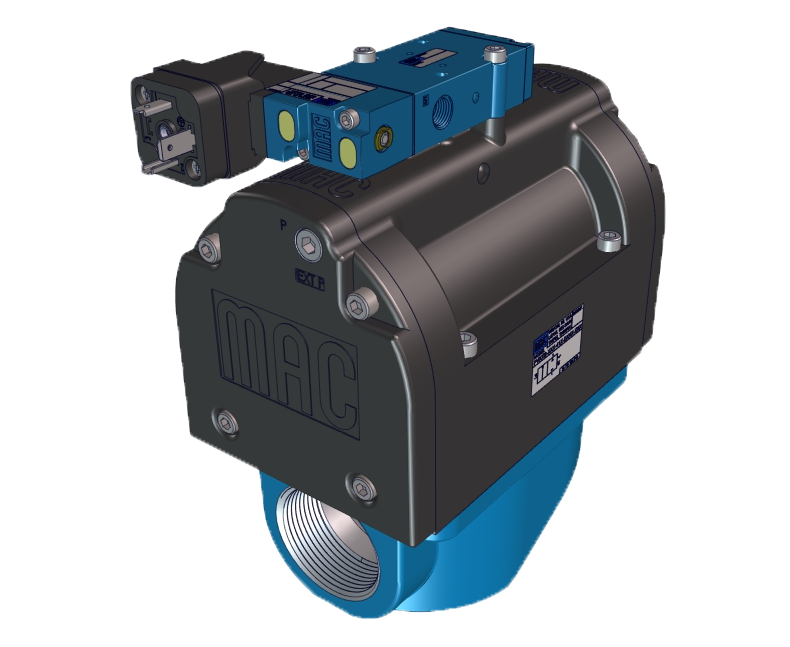

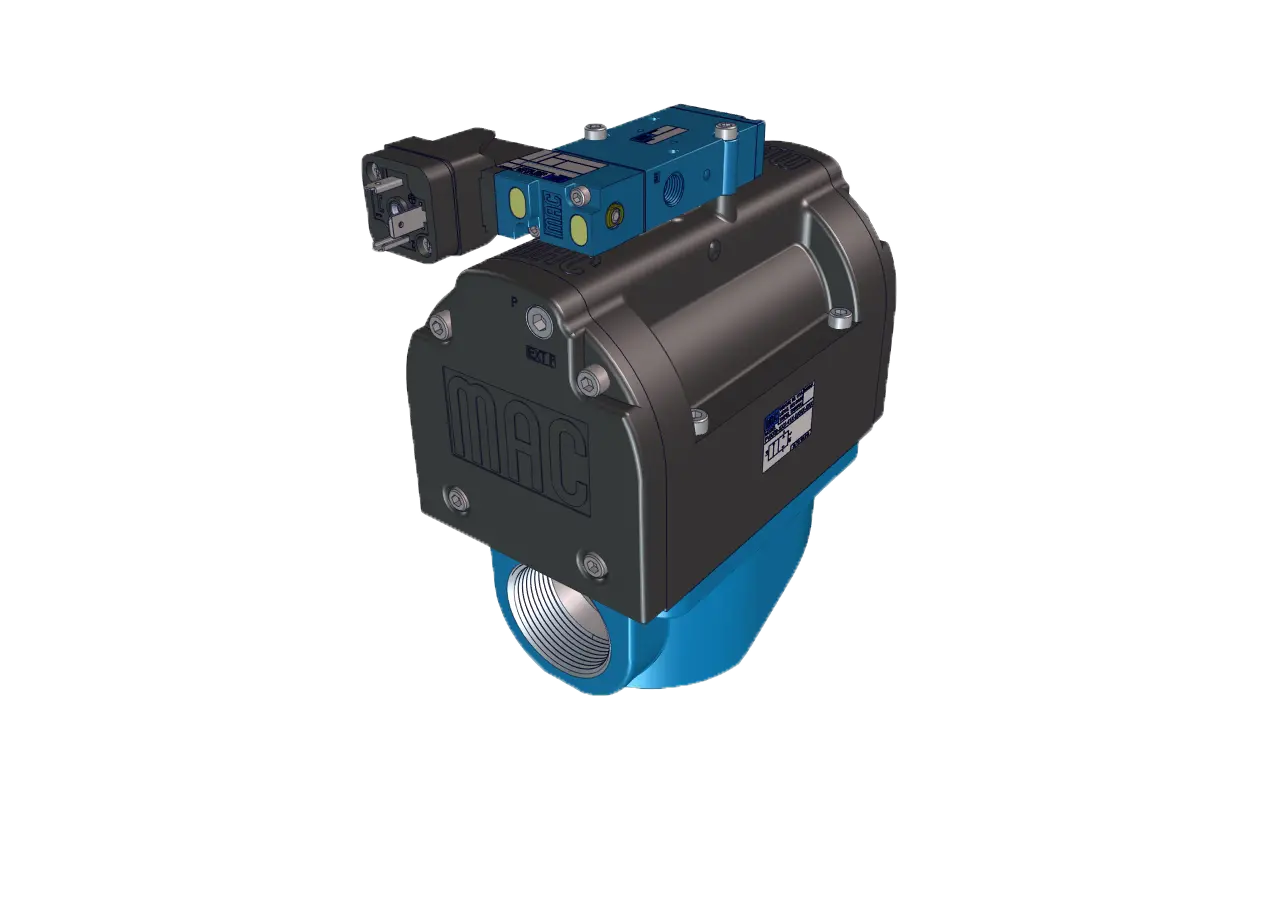

PV06 Series
MAC Valves PV06 Series pulse valves are specifically designed for industrial dust collection and air filtration applications. Thanks to their compact and high-performance design, they generate fast and efficient air pulses while ensuring long-term reliability.
What you gain:
Efficient filter cleaning
Stable performance under intensive cycling
Reduced maintenance operations
Easy integration into dust collection systems
Technology Designed for Precision and Speed
High-performance pneumatic pilot
Fast and efficient air pulse for optimal filter cleaning
MAC Valves D-seal technology
Extends service life and ensures consistent reliability
Direct-acting coil
Fast response time for efficient cleaning cycles
Spool with vulcanized seals
Reduced friction and improved pulse repeatability
General Features – PV06 Series
Technology & Design
Indirect-acting pulse valve
Optimized design for fast, powerful air pulses
Proven MAC Valves technology known for reliability and long service life
Performances
- High flow rate for efficient filter cleaning
- Optimized air pulse for removing fine dust
- Cycle repeatability ensuring consistent performance
- Reduced compressed air consumption
Robustesse & durabilité
- Designed for harsh industrial environments
- Resistant to intensive cycling
- Reduced maintenance requirements
- Long component lifespan
Technical Specifications – PV06 Series
Quickly access key technical data to validate integration into your machines:
- Reference: PV Series 06
- Configuration: Horizontal
- Flow rate : 53
- Dimensions : 164 x 102 x 133 (L x W x H)
- Ports: 1-1/2"
| Flow rate | Temperature Viton | Operating pressure |
| 53,2 cv / 53 200 Nl/min | -29°C - 110°C | 2,75 - 8,27 bar |
MAC Valves Advantages
Powerful pulses allow optimization of pulse frequency spacing.
Valves are often difficult to access inside dust filters. The extended lifespan of MAC spool valves helps optimize maintenance operations and reduces safety risks during repairs.
When the dust filtration system fails, the entire plant can be shut down. MAC spool valves help reduce system downtime.
Weak pulses lead to waste buildup in the system due to poor evacuation, resulting in product contamination and reduced productivity.
Diaphragm valves cause frequent maintenance issues, increasing work-related costs. MAC spool valves ensure consistent operation across the facility.
More efficient pulses allow deeper and more effective cleaning of the filters/bags, extending their service life, reducing pulse frequency, and lowering operating costs.
Only the MAC pilot features a manual override, allowing operators to test the pulse valve easily.
Technical Design
High-performance 4-way pilot
→ Ensures fast switching and efficient air pulse
→ Optimizes bag filter cleaning
MAC D-seal technology
→ Increases lifespan
→ Reduces leakage and improves reliability
Direct-acting coil on poppet
→ Fast and consistent response time
→ Stable performance even under heavy use
Spool with vulcanized seals
→ Reduced friction
→ Improved cycle repeatability
Adapter plate
→ Easy retrofit installation
→ Reduced maintenance time
Integrated manual override
→ Simplifies testing and maintenance
Applications
Industrial Dust Collection
Ideal for cleaning bag filters, the PV03 generates rapid pulses that:
- Prevent filter clogging
- Maintain consistent filtration performance
- Reduce production downtime
Cement & Materials
In heavy dust environments:
- Improves production continuity
- Reduces system fouling
- Extends filter service life
Wood Industry
Ensures efficient extraction of:
- Fine dust
- Wood chips
- Cutting residues
Food & Beverage
Suitable for demanding environments:
- Dust management (flour, sugar, powders)
- Compliance with hygiene standards
- Reduction of cross-contamination
ATEX Certified Solenoid Valves: Secure Your Installations
In hazardous environments (dust, explosive atmospheres), ATEX compliance is essential to ensure safety for both equipment and operators.
MAC Valves ATEX-certified pulse valves provide:
- Maximum safety in hazardous areas (ATEX)
- Enhanced reliability in harsh industrial conditions
- Uninterrupted production
Receive the ATEX documentation
Frequently Asked Questions
Here are some common questions about the PV06 series:
The MAC Valves PV06 series is ideal for installations requiring minimal maintenance. Thanks to its diaphragm-free design, it reduces wear and ensures high reliability in industrial dust collection systems.
Yes, certain versions of the PV06 are available with ATEX certification, allowing use in hazardous environments (dust, gas).
PV06 pulse valves are used in:
- Cement and materials
- Wood industry
- Air treatment
- Demanding industrial environments
Ideal for applications requiring reliability and continuous operation.
Discover also...

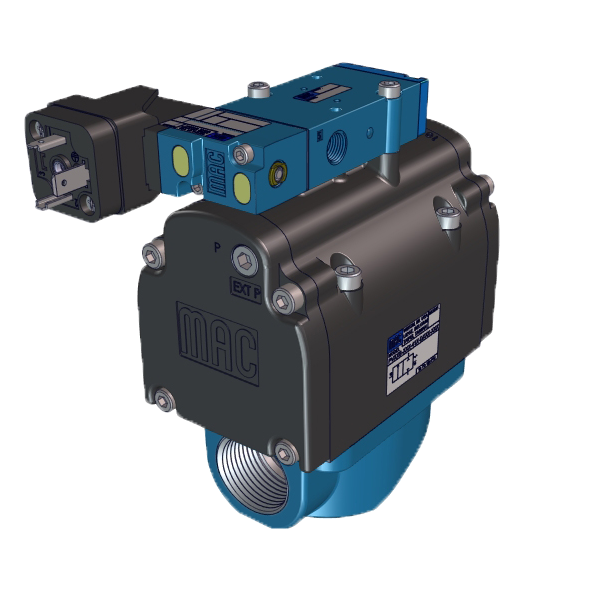

PV 03
Ideal for small installations and low flow rates.
Flow rate : 24cv / 24 000 Nl/min
Pressure : 2,75 - 8,27 bar

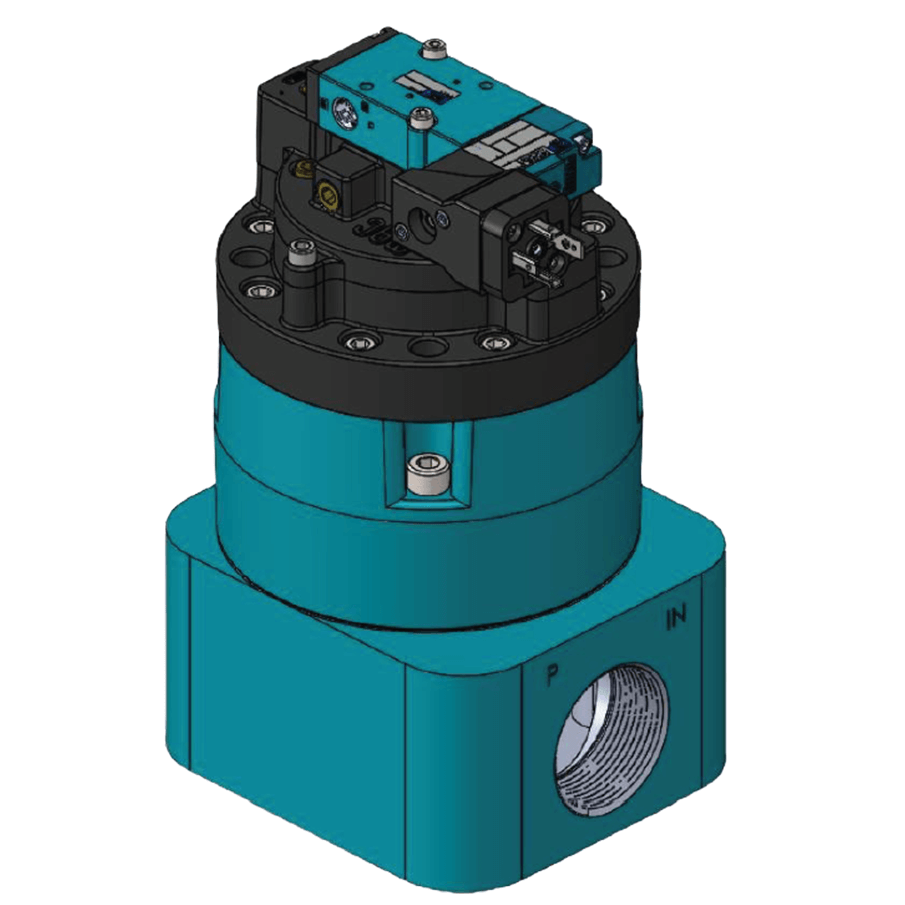

PV 07
Compact solution for specific applications and optimized integration
Flow rate : 70cv / 70 000 Nl/min
Pressure : 2,75 - 8,27 bar

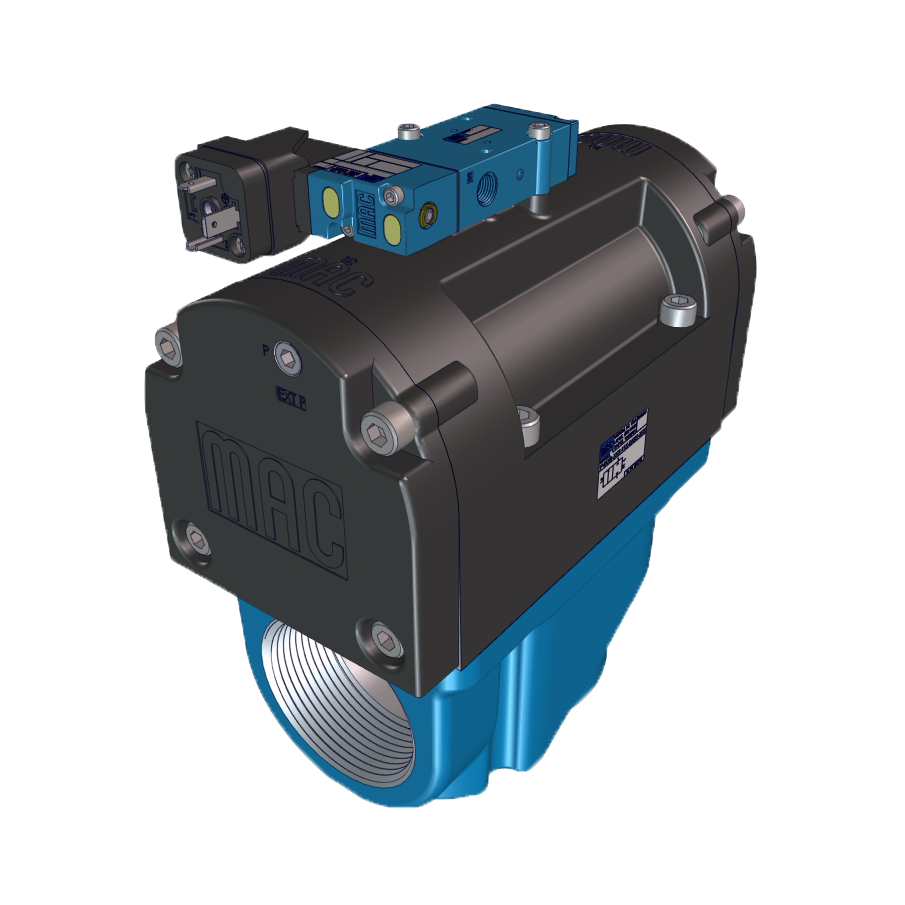

PV 09
Designed for high-flow, heavy-duty installations
Flow rate : 100cv / 100 000 Nl/min
Pressure :
2,75 - 8,27 bar

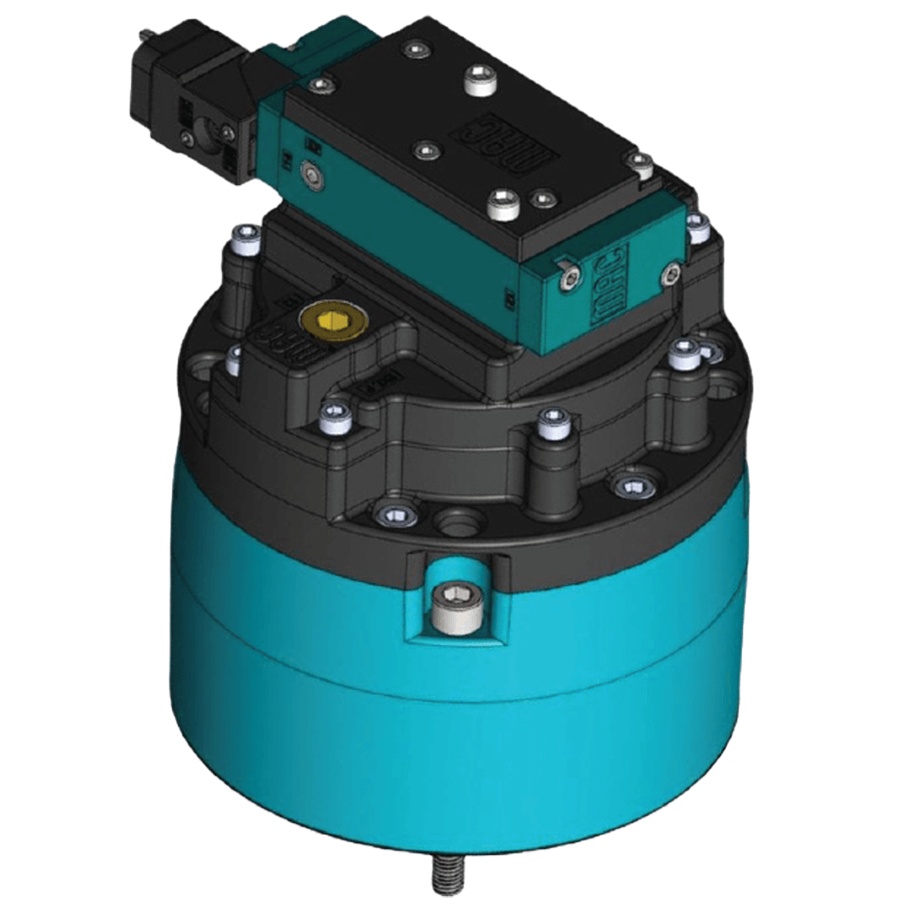

PV 10
Robust solution for demanding industrial applications
Flow rate : 140cv / 140 000 Nl/min
Pressure : 2,75 - 8,27 bar

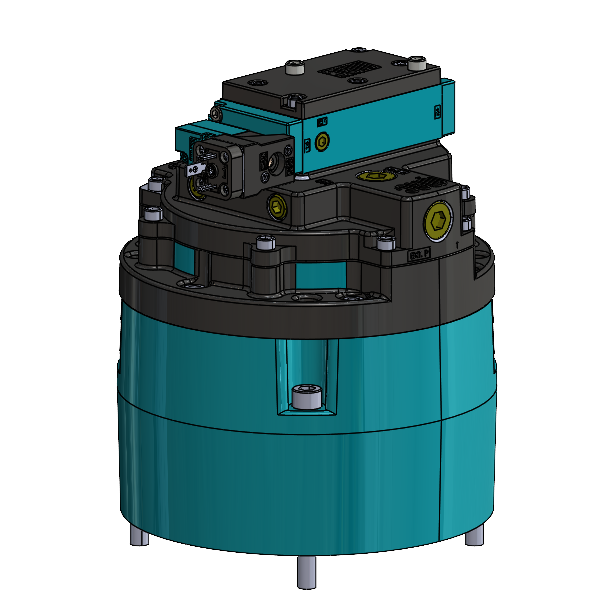

PV 12
Maximum performance for very large installations
Flow rate : 5175cv / 175 200 Nl/min
Pressure : 2,75 - 8,27 bar
