PV 10 Series
Pulse Valves for Industrial Dust Collection
Performance, Speed, and Reliability for Your Dust Collection Systems.
Download our complete catalog
The performance of MAC Valves pulse valves serving your most demanding environments.
Ultra-fast pulse for optimal filter cleaning
Proven reliability for continuous operation in demanding environments
Robust design minimizing maintenance operations

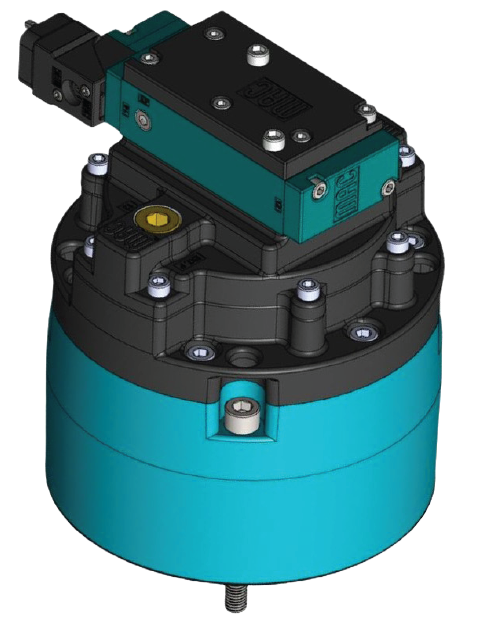

PV10 Series
MAC Valves PV10 Series pulse valves are specifically designed for industrial dust collection and air filtration applications. Thanks to their compact and high-performance design, they generate fast and efficient air pulses while ensuring long-term reliability.
What you gain:
Efficient filter cleaning
Stable performance under intensive cycling
Reduced maintenance operations
Easy integration into dust collection systems
Technology Designed for Precision and Speed
High-performance pneumatic pilot
Fast and efficient air pulse for optimal filter cleaning
MAC Valves D-seal technology
Extends service life and ensures consistent reliability
Direct-acting coil
Fast response time for efficient cleaning cycles
Spool with vulcanized seals
Reduced friction and improved pulse repeatability
Why Choose a Spool Valve?
Unlike diaphragm valves, spool valves offer superior resistance to high cycling rates and demanding industrial environments.
Their design reduces wear on sealing components, resulting in a longer service life in industrial dust collection applications.
Key benefits include:
- Superior resistance to frequent cycling
- Reduced maintenance requirements
- More stable operation
- Outstanding reliability in demanding applications
MAC Valves Advantages
Powerful pulses allow optimization of pulse frequency spacing.
Valves are often difficult to access inside dust filters. The extended lifespan of MAC spool valves helps optimize maintenance operations and reduces safety risks during repairs.
When the dust filtration system fails, the entire plant can be shut down. MAC spool valves help reduce system downtime.
Weak pulses lead to waste buildup in the system due to poor evacuation, resulting in product contamination and reduced productivity.
Diaphragm valves cause frequent maintenance issues, increasing work-related costs. MAC spool valves ensure consistent operation across the facility.
More efficient pulses allow deeper and more effective cleaning of the filters/bags, extending their service life, reducing pulse frequency, and lowering operating costs.
Only the MAC pilot features a manual override, allowing operators to test the pulse valve easily.
Technical Features – PV10 Series
Quickly access key technical data to validate integration into your machines:
- Reference: PV Series 10
- Forme : horizontal
- Flow rate : 140
- Dimensions : Dia x H
- Ports : 2"
Accéder à l'ensemble des données techniques de la série PV03
| Flow rate | Temperature Viton | Operating pressure |
| 140cv /140 000 Nl/min | -29°C - 110°C | 2,75 - 8,27 bar |
How to Size a PV10 Pulse Valve?
Filter Bag Diameter
Determines the volume of air required for each cleaning pulse.
Available Compressed Air Flow
Ensures a pulse powerful enough for effective filter cleaning.
Proper sizing of a pulse valve is essential to ensure effective filter cleaning while optimizing compressed air consumption. An undersized valve may result in insufficient filter cleaning, while an oversized model can unnecessarily increase compressed air consumption.
Operating Pressure
Must comply with the manufacturer's recommendations and the characteristics of the dust collection system.
Cleaning Cycle Frequency
Depends on the amount of dust to be removed and the operating conditions.
Correct sizing improves dust collection system performance, extends filter service life, and reduces compressed air consumption.
OI Technologies Expert Advice
Every installation has its own operating requirements. Our experts can help you select the most suitable PV Series pulse valve for your application, ensuring reliable, durable, and high-performance operation.
Download the PV Series catalog
Technical Design
High-performance 4-way pilot
→ Ensures fast switching and efficient air pulse
→ Optimizes bag filter cleaning
MAC D-seal technology
→ Increases lifespan
→ Reduces leakage and improves reliability
Direct-acting coil on poppet
→ Fast and consistent response time
→ Stable performance even under heavy use
Spool with vulcanized seals
→ Reduced friction
→ Improved cycle repeatability
Adapter plate
→ Easy retrofit installation
→ Reduced maintenance time
Integrated manual override
→ Simplifies testing and maintenance
Service Life and Maintenance of a Pulse Valve
The service life of a pulse valve depends directly on its operating conditions and the quality of system maintenance. When properly maintained, a dust collection pulse valve delivers outstanding reliability and consistent long-term performance. Several factors influence its service life:
Compressed Air Quality : Clean, dry, and properly filtered compressed air helps prevent premature wear of internal components.
Operating Pressure : Following the manufacturer's recommended operating pressure ensures optimal performance and prevents excessive stress on the valve.
Pulse Frequency : A high number of cleaning cycles requires a pulse valve designed to withstand frequent operation.
Operating Conditions : Temperature, humidity, and the working environment can all affect pulse valve performance and service life.
OI Technologies Expert Advice
MAC Valves pulse valves help reduce operating costs and minimize production downtime thanks to their exceptional reliability.
Download the PV Series catalog
ATEX Certified Solenoid Valves: Secure Your Installations
In hazardous environments (dust, explosive atmospheres), ATEX compliance is essential to ensure safety for both equipment and operators.
MAC Valves ATEX-certified pulse valves provide:
- Maximum safety in hazardous areas (ATEX)
- Enhanced reliability in harsh industrial conditions
- Uninterrupted production
Receive the ATEX documentation
Which PV Should You Choose?

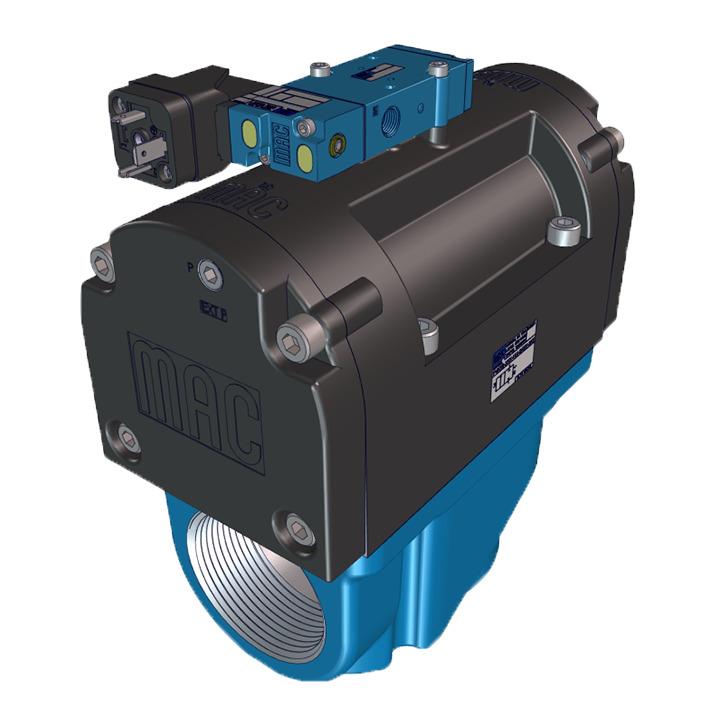

PV 09
Flow : 73.5 kw.
Flow rate : 100cv / 100 000 Nl/min
Pressure :
2,75 - 8,27 bar

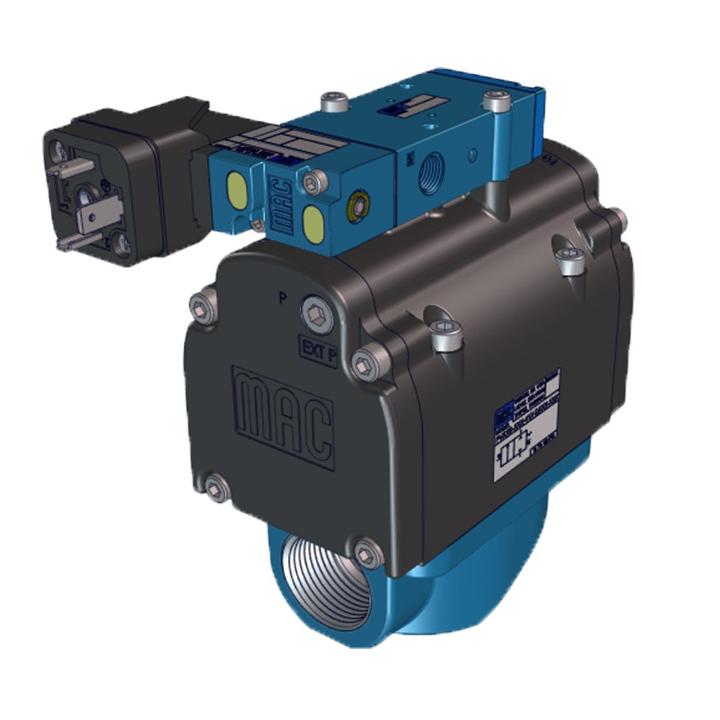

PV 03
Flow : 17.6 kw.
Flow rate : 24cv / 24 000 Nl/min
Pressure : 2,75 - 8,27 bar
PV 12
Flow : 128.7 kw.
Flow rate : 5175cv / 175 200 Nl/min
Pressure : 2,75 - 8,27 bar
Multi-Industry Applications...
Industrial Dust Collection
Ideal for cleaning bag filters, the PV03 generates rapid pulses that:
- Prevent filter clogging
- Maintain consistent filtration performance
- Reduce production downtime
Cement & Materials
In heavy dust environments:
- Improves production continuity
- Reduces system fouling
- Extends filter service life
Wood Industry
Ensures efficient extraction of:
- Fine dust
- Wood chips
- Cutting residues
Food & Beverage
Suitable for demanding environments:
- Dust management (flour, sugar, powders)
- Compliance with hygiene standards
- Reduction of cross-contamination
Complete Your Installation...
Solenoid Valves & Valve Manifolds
Discover our range of solenoid valves and pneumatic valve manifolds for controlling, switching, and automating compressed air circuits. Reliable solutions designed for all industrial applications.
Learn more
Proportional Solenoid Valves
Precisely control flow or pressure with our proportional solenoid valves. Ideal for applications requiring accurate control and continuous regulation.
Cartridge Solenoid Valves
Optimize equipment integration with our cartridge solenoid valves. Compact, high-performance, and reliable, they meet the demands of automated machines and systems.
Learn more
EXPEL Compressed Air Treatment
Ensure clean, maintenance-free compressed air with the EXPEL range. EXPEL compressed air filters provide consumable-free filtration with no maintenance required.
WEBSHOP OI TECHNOLOGIES
Order Your Products Online
Discover our industrial solutions and place your order in just a few clicks.
Frequently Asked Questions
Here are some common questions about the PV10 series:
The MAC Valves PV10 series is ideal for applications requiring a versatile and flexible solution. It adapts to various industrial dust collection and air filtration systems while ensuring consistent performance.
PV10 solenoid valves are designed to operate over millions of cycles, delivering stable performance with optimized maintenance for industrial environments.
The PV09 is a versatile standard solution suitable for most applications, while the PV10 offers greater integration flexibility and higher capacity for installations requiring enhanced performance.
