PV 07 Series
Pulse Valves for Industrial Dust Collection
Performance, Speed, and Reliability for Your Dust Collection Systems.
Download our complete catalog
The performance of MAC Valves pulse valves serving your most demanding environments.
Ultra-fast pulse for optimal filter cleaning
Proven reliability for continuous operation in demanding environments
Robust design minimizing maintenance operations

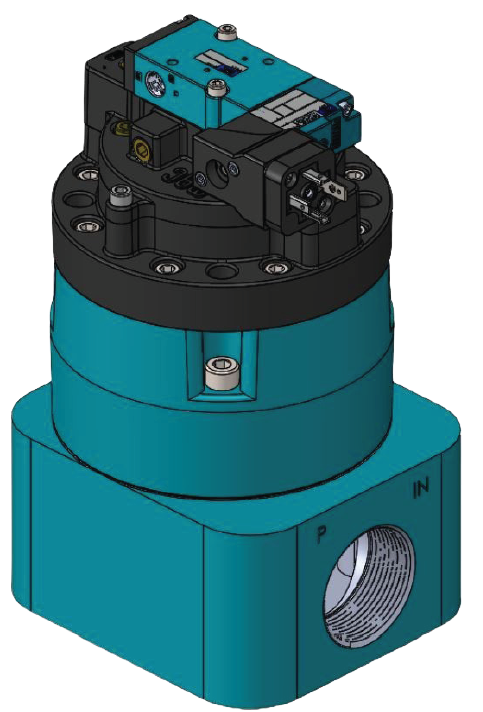

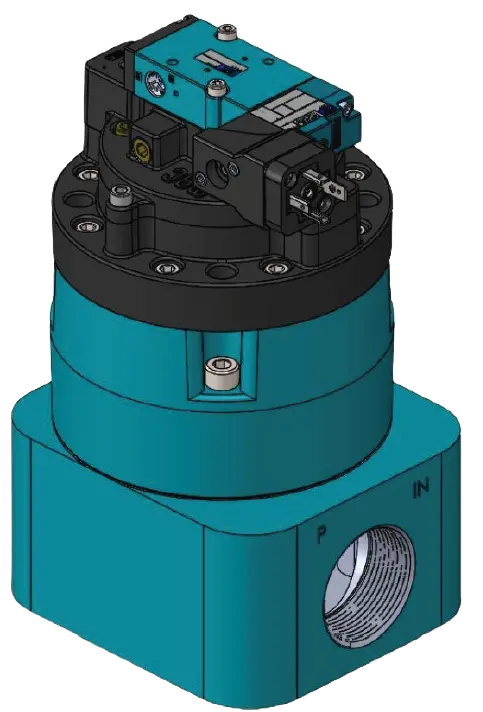

PV07 Series
MAC Valves PV07 Series pulse valves are specifically designed for industrial dust collection and air filtration applications. Thanks to their compact and high-performance design, they generate fast and efficient air pulses while ensuring long-term reliability.
What you gain:
Efficient filter cleaning
Stable performance under intensive cycling
Reduced maintenance operations
Easy integration into dust collection systems
Technology Designed for Precision and Speed
High-performance pneumatic pilot
Fast and efficient air pulse for optimal filter cleaning
MAC Valves D-seal technology
Extends service life and ensures consistent reliability
Direct-acting coil
Fast response time for efficient cleaning cycles
Spool with vulcanized seals
Reduced friction and improved pulse repeatability
Pourquoi choisir une électrovanne à tiroir ?
Contrairement aux électrovannes à membrane, les électrovannes à tiroir offrent une meilleure résistance aux cadences élevées et aux environnements industriels exigeants.
Leur conception réduit l'usure des pièces souples et permet une durée de vie plus importante dans les applications de dépoussiérage industriel.
Les principaux avantages sont :
- Meilleure tenue aux cycles répétés.
- Maintenance réduite ;
- Fonctionnement plus stable ;
- Excellente fiabilité dans les installations fortement sollicitées.
MAC Valves Advantages
Powerful pulses allow optimization of pulse frequency spacing.
Valves are often difficult to access inside dust filters. The extended lifespan of MAC spool valves helps optimize maintenance operations and reduces safety risks during repairs.
When the dust filtration system fails, the entire plant can be shut down. MAC spool valves help reduce system downtime.
Weak pulses lead to waste buildup in the system due to poor evacuation, resulting in product contamination and reduced productivity.
Diaphragm valves cause frequent maintenance issues, increasing work-related costs. MAC spool valves ensure consistent operation across the facility.
More efficient pulses allow deeper and more effective cleaning of the filters/bags, extending their service life, reducing pulse frequency, and lowering operating costs.
Only the MAC pilot features a manual override, allowing operators to test the pulse valve easily.

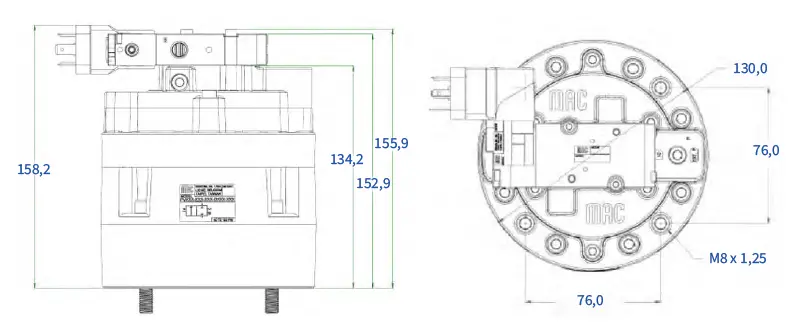

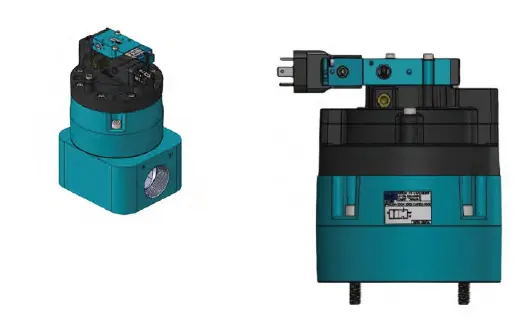

Technical Specifications – PV07 Series
Quickly access key technical data to validate integration into your machines:
- Reference: PV Series 07
- Configuration : axial
- Flow rate : 70
- Dimensions : 130 x 156 (Dia x H)
- Ports : 1 - 1/2"
| Flow rate | Temperature Viton | Operating pressure |
| 70cv / 70 000 Nl/min | -29°C - 110°C | 2,75 - 8,27 bar |
Comment dimensionner une PV07 ?
Le diamètre des manches filtrantes
Determines the volume of air required for each cleaning pulse.
Le débit d'air comprimé disponible
Ensures a pulse powerful enough for effective filter cleaning.
Proper sizing of a pulse valve is essential to ensure effective filter cleaning while optimizing compressed air consumption. An undersized valve may result in insufficient filter cleaning, while an oversized model can unnecessarily increase compressed air consumption.
La pression de service
Must comply with the manufacturer's recommendations and the characteristics of the dust collection system.
La fréquence des cycles de nettoyage
Depends on the amount of dust to be removed and the operating conditions.
Correct sizing improves dust collection system performance, extends filter service life, and reduces compressed air consumption.
Le conseil OI Technologies
Every installation has its own operating requirements. Our experts can help you select the most suitable PV Series pulse valve for your application, ensuring reliable, durable, and high-performance operation.
Télécharger le catalogue des séries PV
Technical Design
High-performance 4-way pilot
→ Ensures fast switching and efficient air pulse
→ Optimizes bag filter cleaning
MAC D-seal technology
→ Increases lifespan
→ Reduces leakage and improves reliability
Direct-acting coil on poppet
→ Fast and consistent response time
→ Stable performance even under heavy use
Spool with vulcanized seals
→ Reduced friction
→ Improved cycle repeatability
Adapter plate
→ Easy retrofit installation
→ Reduced maintenance time
Integrated manual override
→ Simplifies testing and maintenance
ATEX Certified Solenoid Valves: Secure Your Installations
La durée de vie d'une pulse valve dépend directement de ses conditions d'utilisation et de la qualité de la maintenance réalisée sur l'installation. Bien entretenue, une électrovanne de dépoussiérage offre une excellente fiabilité et garantit des performances constantes sur le long terme. Plusieurs facteurs influencent sa longévité :
La qualité de l'air comprimé : un air propre, sec et correctement filtré limite l'usure prématurée des composants.
La pression de fonctionnement : le respect des préconisations du fabricant permet d'assurer un fonctionnement optimal et d'éviter les sollicitations excessives.
La fréquence des impulsions : un nombre élevé de cycles de nettoyage nécessite un équipement adapté à cette cadence.
Les conditions d'exploitation : la température, l'humidité et l'environnement de travail peuvent également avoir un impact sur les performances de la pulse valve.
Le conseil OI Technologies
Les électrovannes à impulsion MAC Valves offrent un coût de production réduit en minimisant les temps d'arrêts grâce à sa grande fiabilité.
Télécharger le catalogue des séries PV
ATEX Certified Solenoid Valves: Secure Your Installations
In hazardous environments (dust, explosive atmospheres), ATEX compliance is essential to ensure safety for both equipment and operators.
MAC Valves ATEX-certified pulse valves provide:
- Maximum safety in hazardous areas (ATEX)
- Enhanced reliability in harsh industrial conditions
- Uninterrupted production
Receive the ATEX documentation
Which PV Should You Choose?

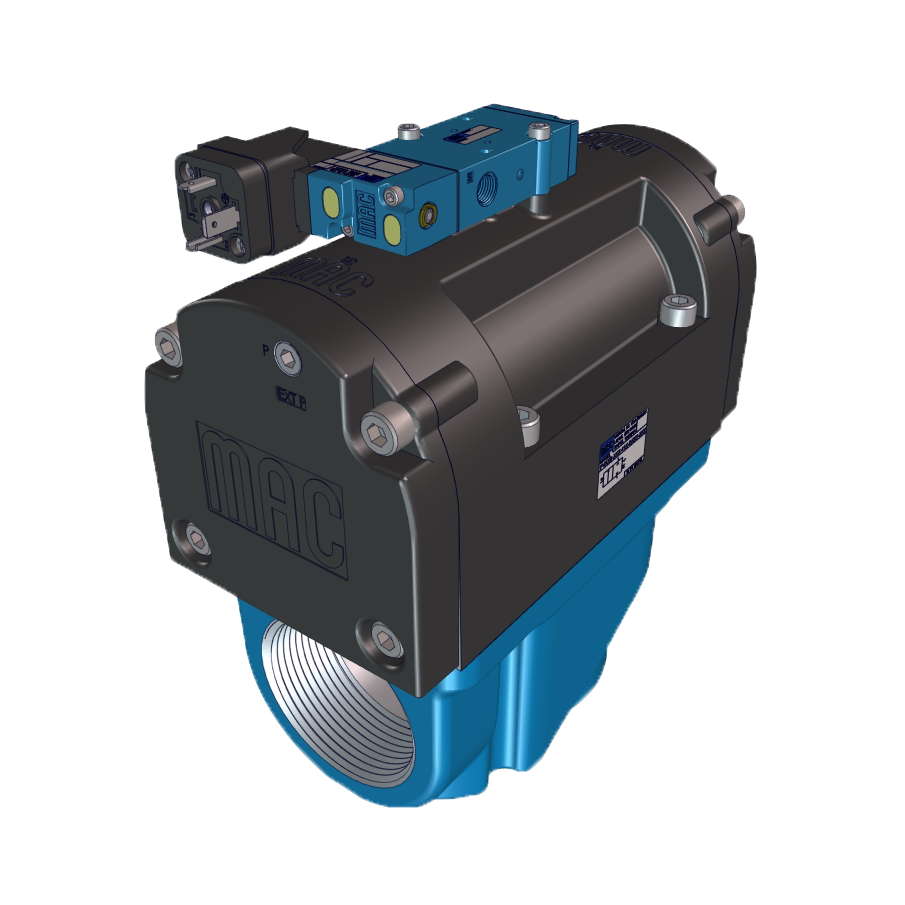

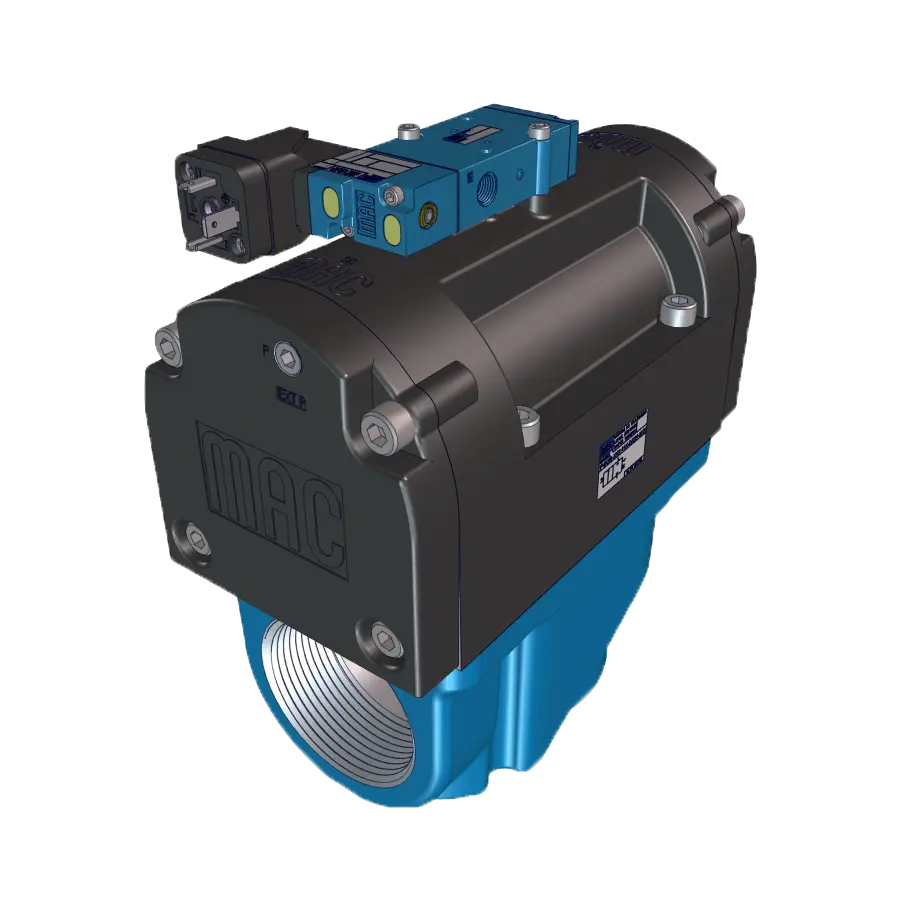

PV 09
Flow : 73..5 kw.
Flow rate : 100cv / 100 000 Nl/min
Pressure :
2,75 - 8,27 bar

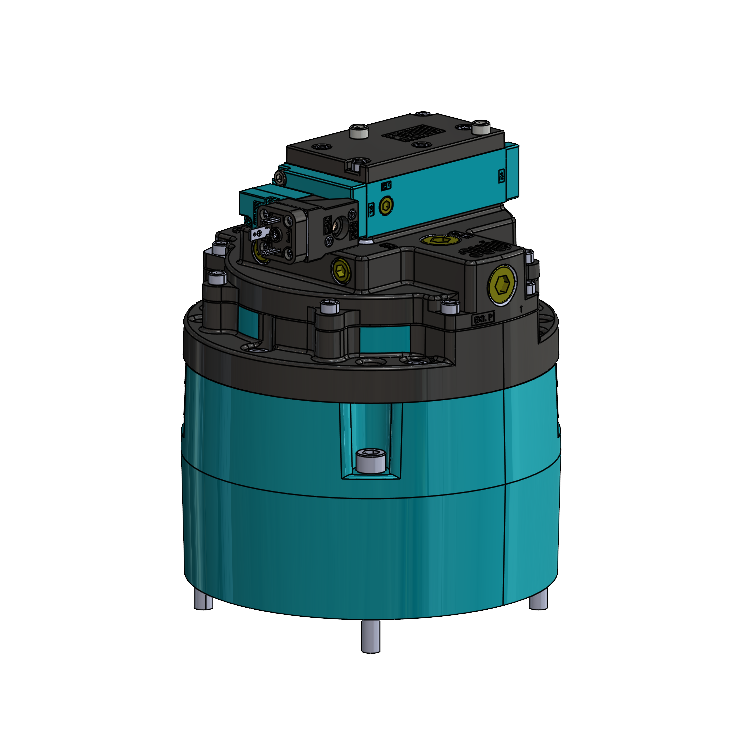

PV 12
Flow : 128.7 kw.
Flow rate : 5175cv / 175 200 Nl/min
Pressure : 2,75 - 8,27 bar
Multi-Industry Applications...
Industrial Dust Collection

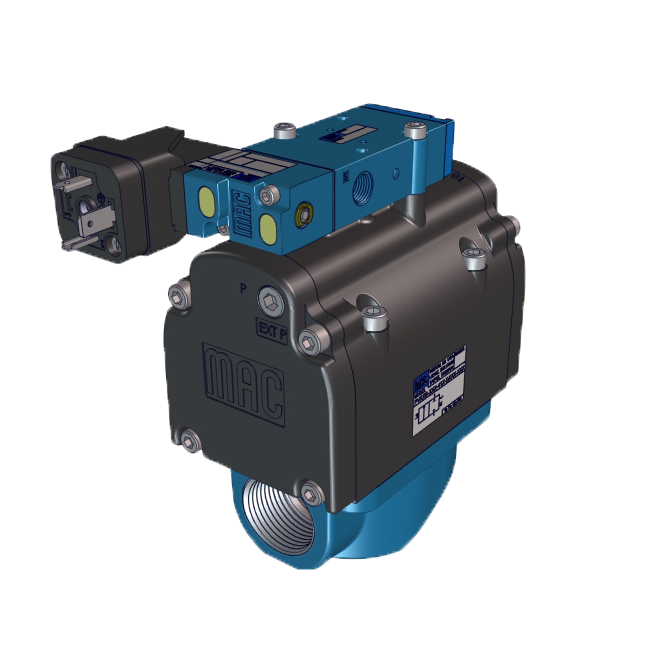

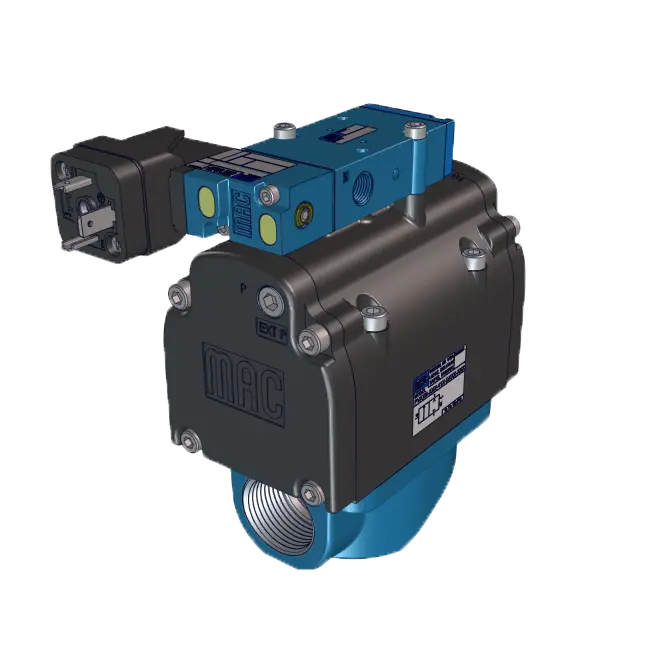

Ideal for cleaning bag filters, the PV03 generates rapid pulses that:
- Prevent filter clogging
- Maintain consistent filtration performance
- Reduce production downtime
Cement & Materials
In heavy dust environments:
- Improves production continuity
- Reduces system fouling
- Extends filter service life
Wood Industry
Ensures efficient extraction of:
- Fine dust
- Wood chips
- Cutting residues
Food & Beverage
Suitable for demanding environments:
- Dust management (flour, sugar, powders)
- Compliance with hygiene standards
- Reduction of cross-contamination
Complete Your Installation...
Solenoid Valves & Valve Manifolds
Discover our range of solenoid valves and pneumatic valve manifolds for controlling, switching, and automating compressed air circuits. Reliable solutions designed for all industrial applications.
Learn more
Proportional Solenoid Valves
Precisely control flow or pressure with our proportional solenoid valves. Ideal for applications requiring accurate control and continuous regulation.
Cartridge Solenoid Valves
Optimize equipment integration with our cartridge solenoid valves. Compact, high-performance, and reliable, they meet the demands of automated machines and systems.
Learn more
EXPEL Compressed Air Treatment
Ensure clean, maintenance-free compressed air with the EXPEL range. EXPEL compressed air filters provide consumable-free filtration with no maintenance required.
WEBSHOP OI TECHNOLOGIES
Order Your Products Online
Discover our industrial solutions and place your order in just a few clicks.
Frequently Asked Questions
Here are some common questions about the PV07 series:
The MAC Valves PV07 series is particularly well-suited for harsh industrial environments (dust, degraded conditions). It ensures reliable performance and stable operation in industrial dust collection systems.
Yes, certain versions of the PV07 are available with ATEX certification, making them suitable for hazardous environments (dust, gas), particularly in industries such as food processing and wood.
MAC Valves PV07 pulse valves are designed to operate over millions of cycles, offering high resistance to harsh industrial conditions and reduced maintenance requirements.
